24V Dc Surge Protector Solar , Surge Protection For Solar Systems
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | Uchi |
| Certification: | CE / SGS / ISO900 |
| Model Number: | OBV10-I-50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 Piece/Pieces |
|---|---|
| Price: | Negotiate Ex-work / FOB price |
| Packaging Details: | Export package |
| Delivery Time: | Shipped in 10 days after payment |
| Payment Terms: | TT / LC |
| Supply Ability: | 100000 Piece/Pieces Month |
|
Detail Information |
|||
| Name: | Solar PV Photovoltaic System Protector | Un: | 220V DC |
|---|---|---|---|
| Material: | PA66 | Rated Working Voltage Un (V): | 24V-1500V |
| Max.discharge Current Imax 8/20 (kA): | 40KA | Protection Class IP: | IP 20 |
| IEC Classification: | Class II | Up: | 1.4KV |
| High Light: | 24V dc surge protector solar,24V surge protection for solar systems,2P surge protection for solar systems |
||
Product Description
24V Dc Surge Protector Solar , Surge Protection For Solar Systems

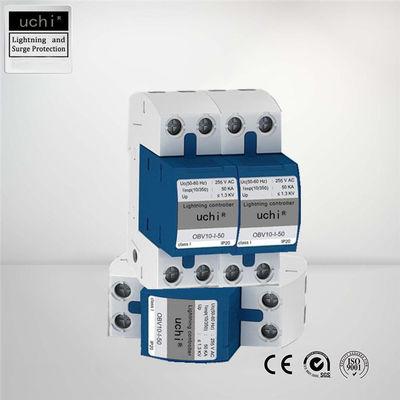

Solar DC Surge Protective Device 2P 24VDC~1500VDC Solar PV Photovoltaic System Protector
DC surge protection device (NDU6) used in lightning protection of solar photovotaic power generation system or other DC power supply system and make the system against lightning overvoltage.Built-in temperature control circuit technology,high security;indicator window green means normal,red to represent the fault,must be replaced and legible;optional remote communication interface,the realization of remote monitoring;high flow,high safety and stability. The product can be pluggable modular design,standard guide installation,selection of high-quality photovoltaic professional lightning protection devices,stable performance,built-in hot melt,flow in dual protection circuit,visualization window,normal green,red fault,large flow capacity,low residual voltage,fast response(nanosecond),with remote monitoring function,convenient remote monitoring(optional).
Performance characteristics:
Adopt the latest thermal separation technology, built-in thermal protection, automatic separation device for short-circuit failure, completely avoid fire;
The core components adopt internationally well-known brands, with excellent performance, stable and reliable work;
Lightning current arrestors OBV10-I-50 meet the type 1 requirement class according to IEC 61643-11. These devices protect low-voltage consumer systems from overvoltages of all types and are available in single-pole to four-pole versions.The voltage-limiting,high-performance spark gaps provide several benefits.A short response time, a low protection level and high current leakage capability with long service life.
The main parameters:
Nominal working voltage Un: 12VDC
Maximum working current: 2A
Nominal discharge current In(8/20μs): 5kA
Maximum discharge current Imax (8/20μs): 10kA
Combination method: 1P
Response time: 25ns
Working environment: -40℃～＋85℃
Installation method: rail installation
Place of Origin: Dongguan
Qualification certification: CE, FCC, ROHS, product test report, Pacific Product Insurance, etc.
Test standard: IEC 61643-1:2005; GB 18802.1-2011 Low Voltage Surge Protector (SPD) Part 1 Surge Protector for Low Voltage Distribution System-Performance Requirements and Test Methods
Scope of application:
This product is a special lightning surge protector for DC systems, suitable for 12V DC power supply systems.
|
Model
|
OBV10-I-50 |
|
IEC Classification
|
Class II |
|
DC Network Un (50/60Hz)(V)
|
220V DC |
|
Max. continuous operationg voltage Uc (V)
|
350 DC |
|
Nornimal discharge current In (kA)
|
20kA |
|
Max. discharge current(8/20us) Imax (kA)
|
40kA |
|
Voltage protection level Up (kV)
|
≤1.4kV |
|
Max. backup fuse (A)
|
35A DC (gG) |
|
Response time tA
|
≤25ns |
|
Capacity of withstand short circuit
|
300A |
|
Operating temperature
|
-40°C∼+85°C |
|
Relative humidity
|
≤95%(25°C) |
|
Max. cross-sectional area of wire
|
25mm2 multi-strand cord |
|
Dimensions (1P) (W*L*H) (mm)
|
18X90X62 |
|
Mounting
|
DIN Rail 35mm |
|
Protection rating
|
IP 20 |
|
Housing material
|
PBT |
|
Flame retardant rating
|
UL 94 V-0 |
|
Capacity of remote signaling contact
|
250VAC/0.5A 30VDC/3A |
|
Max.cross-sectional area of wire for remote signaling contact
|
1.5mm² multi-strand cord/single cord |
|
Status indicator
|
Normal: Green Malfunction: Red |
|
Standards compliance
|
EN50539-11 IEC61643-31 GB/T 18802.31 |
Safety super wide electrical spacing and creepage distance, high voltage withstand voltage,meet high altitude area use requirement.
No load current is considered; plug and pull design, can be charged replacement, easy to maintain.Built-in temperature control circuit technology, high safety performance, no after flow.
Indicates that the green color of the window is normal and any red indicates failure. Clear and easy todistinguish.
Optional remote monitoring interface can be used for remote monitoring.
High working voltages, high pass flow, high safety performance and high stability.
