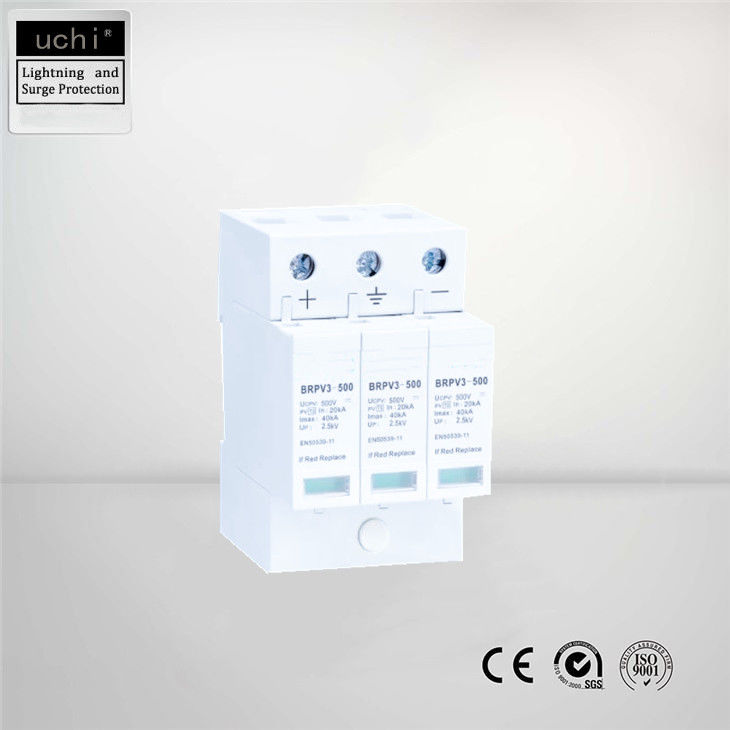

• Thermal Plastic UL94-V0 DC Surge Protection Device 500V
Thermal Plastic UL94-V0 DC Surge Protection Device 500V

Thermal Plastic UL94-V0 DC Surge Protection Device 500V

Product Details:

Place of Origin: Dongguan China
Brand Name: Uchi
Certification: CE / SGS / ISO900
Model Number: DC Surge Protection Device

Payment & Shipping Terms:

Minimum Order Quantity: 50 Piece/Pieces
Price: Negotiate Ex-work / FOB price
Packaging Details: Export package
Delivery Time: Shipped in 10 days after payment
Payment Terms: TT / LC
Supply Ability: 100000 Piece/Pieces Month
Get Best Price Contact Now

Detail Information

Pole Number: 3 Poles Ucpv: 500VDC
In: 20KA Imax: 40KA
Material: Thermal Plastic UL94-V0 Protection Class IP: IP 20
Application: Photovoltaic Systems Test Standards: IEC 61643-21
High Light:

500V spd 40ka


Thermoplastic UL94-V0 DC Surge Protection Device


40ka DC Surge Protection Device

Product Description

Thermal Plastic UL94-V0 DC Surge Protection Device 500V

500V DC Surge Protection Device Made By Thermal Plastic UL94-V0


Performance characteristics:

Adopt the latest thermal separation technology, built-in thermal protection, automatic separation device for short-circuit failure, completely avoid fire;The core components adopt internationally well-known brands, with excellent performance, stable and reliable work;

• Class 2 / Type 2 available.
• Visual status indication.
• Remote signal contact: optional.
• Conform to IEC61643-11 standards.


The main parameters:

Max. continuous operating dc voltage : 500V DC

Nominal discharge current In(8/20μs): 20kA
Maximum discharge current Imax (8/20μs):40kA
Combination method: +/PE,-/PE
Response time: ≤25ns
Working environment: -40℃~+80℃
Installation method: rail installation


Place of Origin: Dongguan

Qualification certification: CE, FCC, ROHS, product test report, Pacific Product Insurance, etc.
Test standard: IEC 61643-1:2005; GB 18802.1-2011 Low Voltage Surge Protector (SPD) Part 1 Surge Protector for Low Voltage Distribution System-Performance Requirements and Test Methods

Scope of application:
This product is a special lightning surge protector for DC systems, suitable for 12V DC power supply systems.


3 Mod DC Surge Protection Device
SPD classification according to EN61643-11 Type 2
SPD classification according to EN50539-11 Class II
Max. continuous operating dc voltage                     Ucpv 500V DC
Nominal discharge current (8/20us)                             In 20kA
Max. discharge current (8/20us)                              Imax 40kA
Voltage protection level [(DC+/DC-)→PE]                   Up ≤2.5kV
Response time                                                              tA ≤25ns
Operating temperature range                                       Tu -40℃-80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material                   Thermal plastic UL94-V0
Degree of protection IP20


More application


• Protect against lighting surge voltages in photovoltaic power supply networks.
• Recommended use at both ends of the DC power supply line (solar panel side and
  inverter/converter side).
• Suitable for the new energy solar photovoltaic power generation systems or other dc power supply
  system of lightning protection.
Thermal Plastic UL94-V0 DC Surge Protection Device 500V 0




Q: Can I get some samples?
A: Yes, Sample orders welcomed.
Q: Can I use my own Logo or design on goods?
A: Yes, Customized logo and design on mass production are available.
Q:What is the delivery time?
A: 3 days for samples, 7-15 days for mass production.
Q: What is the payment term?
A: T/T, L/C at sight, West union , Paypal, etc.
