Product Details:

Place of Origin: Dongguan China
Brand Name: Uchi
Certification: CE / SGS / ISO900
Model Number: DC Surge Protection Device

Payment & Shipping Terms:

Minimum Order Quantity: 50 Piece/Pieces
Price: Negotiate Ex-work / FOB price
Packaging Details: Export package
Delivery Time: Shipped in 10 days after payment
Payment Terms: TT / LC
Supply Ability: 100000 Piece/Pieces Month
Get Best Price Contact Now

Detail Information

Pole Number: 2 Pole Ucpv: 800VDC
In: 20KA Imax: 40KA
Material: Thermal Plastic Type: Type 2
Protection Class IP: IP 20 Application: DC
Standard: IEC61643-11
High Light:

IEC61643-11 DC Spd Type 2

,

800V Dc Lightning Arrestor

,

40kA dc lightning arrestor

Product Description

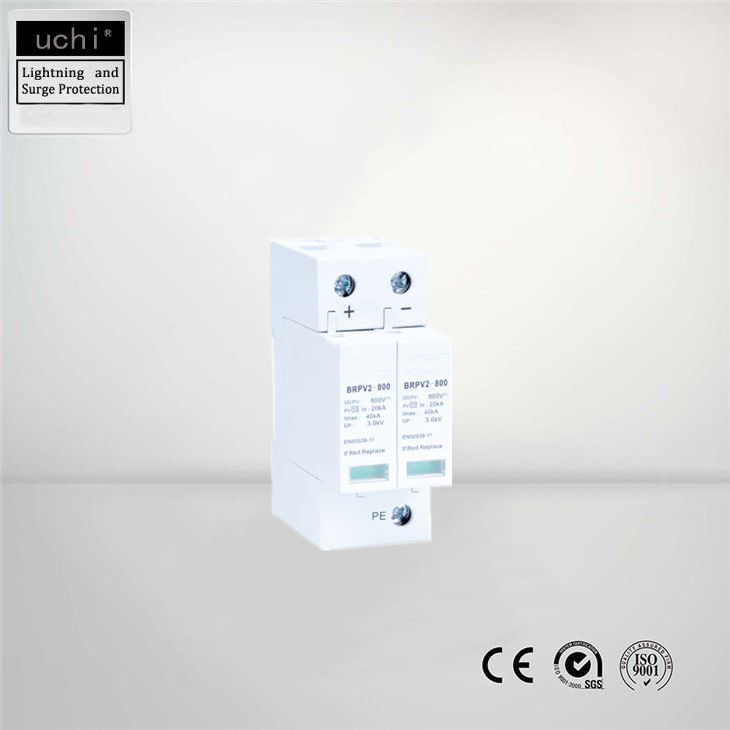

IEC61643-11 Standard DC Spd Type 2 , 800V DC Lightning Arrestor Imax 40kA

Type 2 DC Surge Protection Device, 800 VDC Lightning Arrester



Performance characteristics:


Adopt the latest thermal separation technology, built-in thermal protection, automatic separation device for short-circuit failure, completely avoid fire;The core components adopt internationally well-known brands, with excellent performance, stable and reliable work;



The main parameters:


Max. continuous operating dc voltage     Ucpv800VDC
Nominal discharge current In(8/20μs): 20kA
Maximum discharge current Imax (8/20μs): 40kA
Combination method: +/PE,-/PE
Response time: ≤25ns
Working environment: -40℃~+80℃
Installation method: rail installation



Place of Origin: Dongguan


Qualification certification: CE, FCC, ROHS, product test report, Pacific Product Insurance, etc.
Test standard: IEC 61643-1:2005; GB 18802.1-2011 Low Voltage Surge Protector (SPD) Part 1 Surge Protector for Low Voltage Distribution System-Performance Requirements and Test Methods

Scope of application:
This product is a special lightning surge protector for DC systems, suitable for 12V DC power supply systems.


2 Mod DC Surge Protection Device
SPD classification according to EN61643-11 Type 2
SPD classification according to EN50539-11 Class II
Max. continuous operating dc voltage                          Ucpv 800V
Nominal discharge current (8/20us)                                  In 20kA
Max. discharge current (8/20us)                                   Imax 40kA
Voltage protection level [(DC+/DC-)→PE]                       Up ≤3.0kV
Response time                                                                  tA ≤25ns
Operating temperature range                                           Tu -40℃-80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material                 Thermal plastic UL94-V0
Degree of protection IP20


More application

• For use in PV d.c. system at boundaries from LPZ 0B-1 and higher.
• Protect against lightning surge voltages in solar system (photovoltaic power supply system).
• Protect DC power equipment against lightning surge voltages in photovoltaic power supply network,
  such as inverters, combiner boxes and charge controllers.
