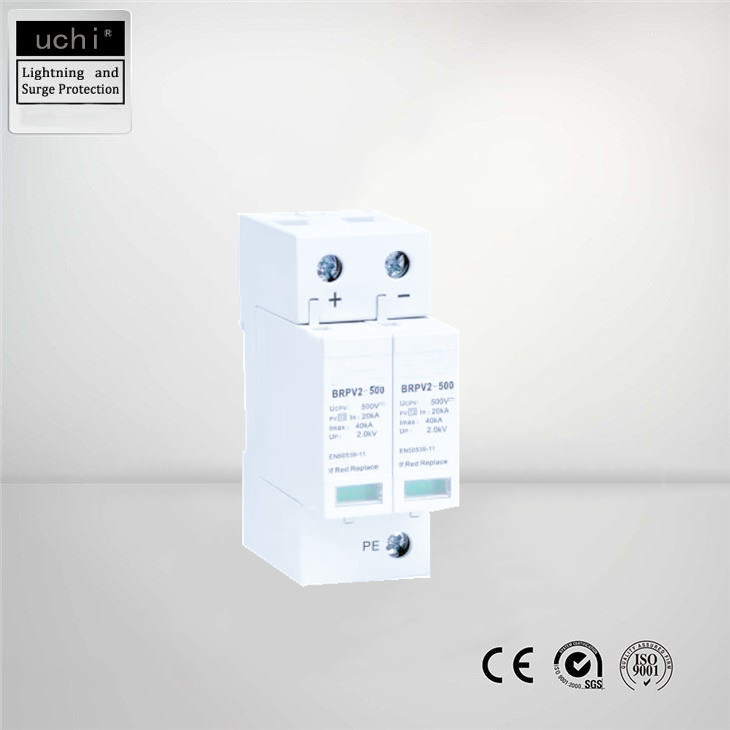

Thermal Plastic Dc Surge Protector Solar , Surge Voltage Arrester IP20
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | Uchi |
| Certification: | CE / SGS / ISO900 |
| Model Number: | DC Surge Protection Device |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 Piece/Pieces |
|---|---|
| Price: | Negotiate Ex-work / FOB price |
| Packaging Details: | Export package |
| Delivery Time: | Shipped in 10 days after payment |
| Payment Terms: | TT / LC |
| Supply Ability: | 100000 Piece/Pieces Month |
|
Detail Information |
|||
| Pole Number: | 2 Pole | Ucpv: | 500VDC |
|---|---|---|---|
| In: | 20KA | Imax: | 40KA |
| Material: | Thermal Plastic | Type: | Type 2 |
| Protection Class IP: | IP 20 | Application: | DC |
| High Light: | IP20 surge voltage arrester,Thermoplastic dc surge protector solar,FCC dc surge protector solar |
||
Product Description
Thermal Plastic Dc Surge Protector Solar , Surge Voltage Arrester IP20
IP 20 DC Arrester Power Surge Protection Device For Low Voltage
Performance characteristics:
Adopt the latest thermal separation technology, built-in thermal protection, automatic separation device for short-circuit failure, completely avoid fire;
The core components adopt internationally well-known brands, with excellent performance, stable and reliable work;
The main parameters:
Max. continuous operating dc voltage Ucpv: 500VDC
Nominal discharge current In(8/20μs): 20kA
Maximum discharge current Imax (8/20μs): 40kA
Combination method: +/PE,-/PE
Response time: ≤25ns
Working environment: -40℃~+80℃
Installation method: rail installation
Place of Origin: Dongguan
Qualification certification: CE, FCC, ROHS, product test report, Pacific Product Insurance, etc.
Test standard: IEC 61643-1:2005; GB 18802.1-2011 Low Voltage Surge Protector (SPD) Part 1 Surge Protector for Low Voltage Distribution System-Performance Requirements and Test Methods
Scope of application:
This product is a special lightning surge protector for DC systems, suitable for 12V DC power supply systems.
| 2 Mod | DC Arrester Power Surge |
| SPD classification according to EN61643-11 | Type 2 |
| SPD classification according to EN50539-11 | Class II |
| Max. continuous operating dc voltage Ucpv | 500V |
| Nominal discharge current (8/20us) In | 20kA |
| Max. discharge current (8/20us) Imax | 40kA |
| Voltage protection level [(DC+/DC-)→PE] Up | ≤2.0kV |
| Response time tA | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ |
| Operating state / fault indication | green / red |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermal plastic UL94-V0 |
| Degree of protection | IP20 |
