220V Solar PV Surge Protection , 40KA Surge Arrester DC SGS Approved
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | Uchi |
| Certification: | CE / SGS / ISO900 |
| Model Number: | OBV10-I-50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 Piece/Pieces |
|---|---|
| Price: | Negotiate Ex-work / FOB price |
| Packaging Details: | Export package |
| Delivery Time: | Shipped in 10 days after payment |
| Payment Terms: | TT / LC |
| Supply Ability: | 100000 Piece/Pieces Month |
|
Detail Information |
|||
| Name: | Solar Photovoltaic DC Power SPD | Un: | 220V DC |
|---|---|---|---|
| Material: | PA66 | Rated Working Voltage Un (V): | 24V-1500V |
| Max.discharge Current Imax 8/20 (kA): | 40KA | Type: | Solar Surge Protection |
| Protection Class IP: | IP 20 | IEC Classification: | Class II |
| Up: | 1.4KV | ||
| High Light: | Solar PV Surge Protection,220V surge arrester dc,SGS surge arrester dc |
||
Product Description
220V Solar PV Surge Protection , 40KA Surge Arrester DC SGS Approved

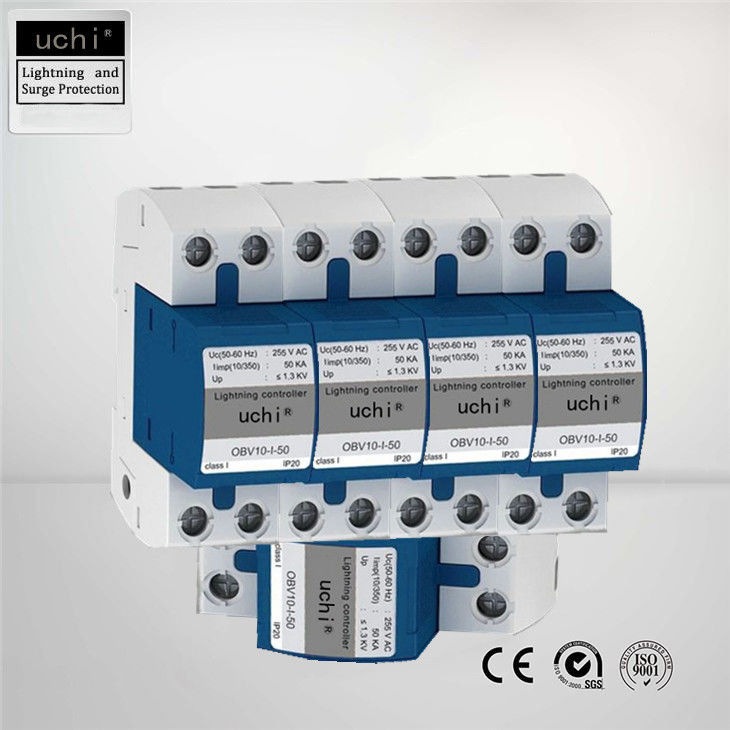

40KA 220V DC Solar Photovoltaic DC Power SPD / Solar Surge Protective Device
Prewired modular complete unit for use in photovoltaic systems consisting of a base part and plug-in protection modules
Combined disconnection and short-circuiting device with safe electrical isolation in the protection module prevents fire damage resulting from d.c. switching arcs (patented SCI principle).
Performance characteristics:
Adopt the latest thermal separation technology, built-in thermal protection, automatic separation device for short-circuit failure, completely avoid fire;
The core components adopt internationally well-known brands, with excellent performance, stable and reliable work;
Lightning current arrestors OBV10-I-50 meet the type 1 requirement class according to IEC 61643-11. These devices protect low-voltage consumer systems from overvoltages of all types and are available in single-pole to four-pole versions.The voltage-limiting,high-performance spark gaps provide several benefits.A short response time, a low protection level and high current leakage capability with long service life.
The main parameters:
Nominal working voltage Un: 12VDC
Maximum working current: 2A
Nominal discharge current In(8/20μs): 5kA
Maximum discharge current Imax (8/20μs): 10kA
Combination method: 1P
Response time: 25ns
Working environment: -40℃～＋85℃
Installation method: rail installation
Place of Origin: Dongguan
Qualification certification: CE, FCC, ROHS, product test report, Pacific Product Insurance, etc.
Test standard: IEC 61643-1:2005; GB 18802.1-2011 Low Voltage Surge Protector (SPD) Part 1 Surge Protector for Low Voltage Distribution System-Performance Requirements and Test Methods
Scope of application:
This product is a special lightning surge protector for DC systems, suitable for 12V DC power supply systems.
|
Model
|
OBV10-I-50 |
|
IEC Classification
|
Class II |
|
DC Network Un (50/60Hz)(V)
|
220V DC |
|
Max. continuous operationg voltage Uc (V)
|
350 DC |
|
Nornimal discharge current In (kA)
|
20kA |
|
Max. discharge current(8/20us) Imax (kA)
|
40kA |
|
Voltage protection level Up (kV)
|
≤1.4kV |
|
Max. backup fuse (A)
|
35A DC (gG) |
|
Response time tA
|
≤25ns |
|
Capacity of withstand short circuit
|
300A |
|
Operating temperature
|
-40°C∼+85°C |
|
Relative humidity
|
≤95%(25°C) |
|
Max. cross-sectional area of wire
|
25mm2 multi-strand cord |
|
Dimensions (1P) (W*L*H) (mm)
|
18X90X62 |
|
Mounting
|
DIN Rail 35mm |
|
Protection rating
|
IP 20 |
|
Housing material
|
PBT |
|
Flame retardant rating
|
UL 94 V-0 |
|
Capacity of remote signaling contact
|
250VAC/0.5A 30VDC/3A |
|
Max.cross-sectional area of wire for remote signaling contact
|
1.5mm² multi-strand cord/single cord |
|
Status indicator
|
Normal: Green Malfunction: Red |
|
Standards compliance
|
EN50539-11 IEC61643-31 GB/T 18802.31 |
* Indicator window is obvious (green is OK, red indicates failure)
* Fully enclosed terminal
*The shell is made of PC flame retardant material, fire insulation
* Replaceable module
