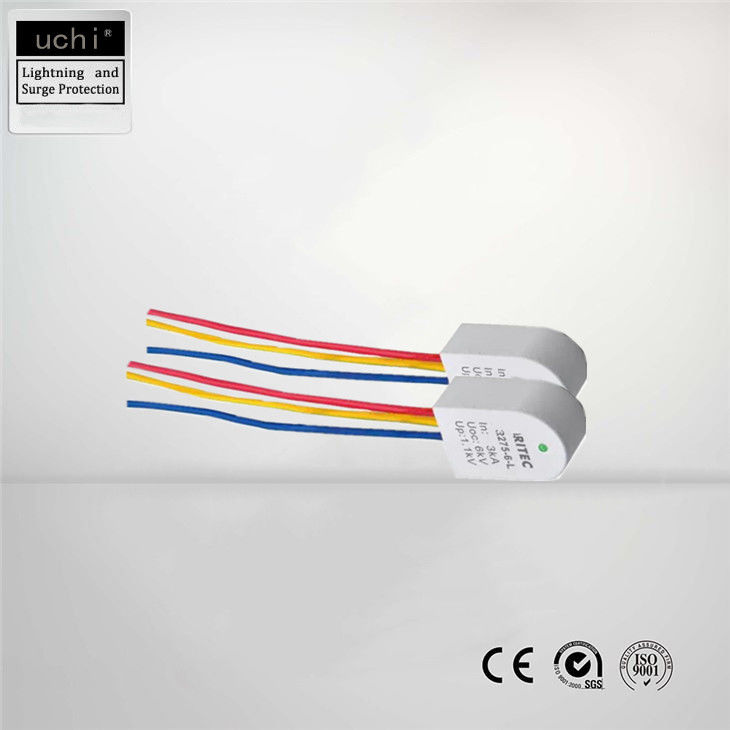

275V AC Led Light Surge Protector , Lightning Arrester Protection SGS Approved
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | Uchi |
| Certification: | CE / SGS / ISO9001 |
| Model Number: | LED Surge Protection Device |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 piece / pieces |
|---|---|
| Price: | Negotiate Ex-work / FOB price |
| Packaging Details: | Export package |
| Delivery Time: | 8-15 days after payment |
| Payment Terms: | TT / LC |
| Supply Ability: | 50000 pieces per month |
|
Detail Information |
|||
| Brand Name: | Uchi | Name: | LED Street Lights Surge Protection Device |
|---|---|---|---|
| In: | 3kA | Nominal A.c.voltage (power Supply) [UN: | 230V |
| AC: | 275VDC | Material: | Thermoplastic UL94-V0 |
| Standard: | IEC 61643-11 | Classification: | Class III |
| Response Time: | <25ns | Degree Of Protection: | IP20 |
| High Light: | lightning arrester protection,275V AC led light surge protector,SGS led light surge protector |
||
Product Description
275V AC Led Light Surge Protector , Lightning Arrester Protection SGS Approved
3kA LED Street Lights Surge Protection Devices ,lightning arrester
Lightning protection
| LED Surge Protection Device | |
| SPD classification according to EN61643-11 | Type 3 |
| SPD classification according to IEC 61643-11 | Class III |
| Nominal a.c. voltage Un | 230V |
| Max. continuous operating a.c. voltage Uc | 275V |
| Max. continuous operating d.c. voltage Uc | 300V |
| Nominal discharge current (8/20us) In | 3kA |
| Combined impulse Uoc | 6kV |
| Voltage protection level Up | ≤1200V |
| Response time tA | ≤25ns |
| Operating temperature range Tu | -40℃—80℃ |
| Operating state / fault indication | LED |
| For mounting on | 35mm Din rail |
| Enclosure materail | Thermal plastic UL94-V0 |
| Degree of protection | IP20 |
Summary:
Lightning arrester is a series of power surge protection products designed for LED outdoor lighting system. It can effectively protect LED outdoor lighting power supply system against lightning strikes. It is widely used in LED lamps, tunnel lights, outdoor landscape lights and many other outdoor Lighting system.
Surge protective devices (SPD) connected between the power supply and the LED light in serial/shunt connection for protection of LED light from surge and transient over-voltage caused by the inducted lightning stroke or by internal power systems. Customized products are also available.
Main Character:
• Single-phase flexible surge protection
• High discharge capacity, quick response
• Low voltage protection level
Features
- Protection class: Type 3, Class III.
- High performance varistor with thermal disconnection tripping device.
- Nominal AC Voltage, 230V.
- Nominal Discharge current: 5kA.
- Rated to IP20.
- Surge protectors are used to guard sensitive equipments from voltage spike.
- Used in surge protectors, thermally protected varistor modules from Britec are built with high-quality, dependable materials.
-
LED Lights Surge Protection Device for LED Street Lights can be connected in series or parallel.
