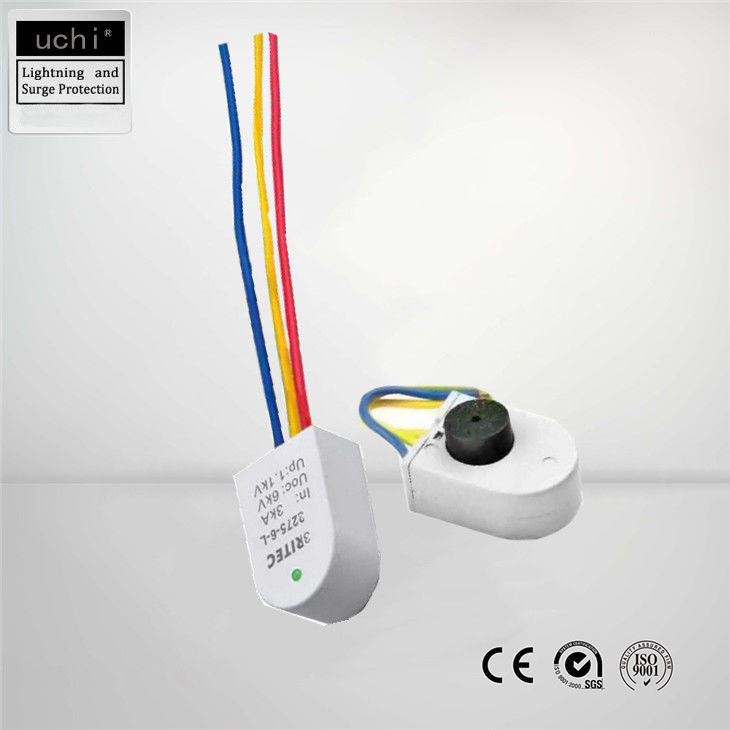

6kv Type 3 LED Surge Protection Device IEC 61643-11 Full Protection Mode

Product Description

6kv Type 3 LED Surge Protection Device IEC 61643-11 Full Protection Mode

6kv Led Surge Protection Device with Full protection mode, IEC 61643-11

Lightning protection

Summary:

It can be installed in LED lamp or perpetual lamp and connected with LED power driver to provide reliable surge protection. It can effectively prolong the service life of lamps and improve the stability of lamps and lanterns.

It is a transient over-voltage protection device specially used for outdoor LED lighting system. It is mainly composed of thermal protection varistor and gas discharge tube device.

- specifically for outdoor and commercial LED lighting applications, LED signage and traffic light manufacturers, including roadway lighting, parking garage lighting, wash wall lighting, traffic lighting, flood lighting, digital signage, street lightning, and tunneal lighting.
- 20kA lightning surge protection.
- Metal oxide varistor (MOV) thermal protection.
- Parallel connected and series connected SPD options.
- With built-in thermal disconnect function.
- Full protection mode.

Main Character:

• Single-phase flexible surge protection

• High discharge capacity, quick response

• Low voltage protection level

Features

• Protection class: Type 3, Class III.
• High performance varistor with thermal disconnection tripping device.
• Nominal AC Voltage, 230V.
• Nominal Discharge current: 5kA.
• Rated to IP20.
• Applicable to class I or II lamps.
• Built in protection mode: L-N, L-PE,N-PE.
• Built in thermal separation function for higher security.
• Parallel isolation design, excellent protectionperformance.
• Excellent surge resistance and very low residual voltage.
• The product is small and convenient for embedded installation.

Tip:How can we distinguish the quality of the lightning arrester?

1. It can be seen from the reaction time: determine whether the lightning arrester can respond in time and quickly discharge the lightning current.

2. It can be seen from the insertion loss: this refers to the installation of a lightning protector, the impact of this lightning protector on the line, the smaller the better

3. It can be seen from the number of impact resistance: determines the service life of the lightning arrester. Generally, the gas discharge tube will not drop after being placed for a period of time. If you want to check its quality, you can use an adjustable high-voltage DC power supply to test .
