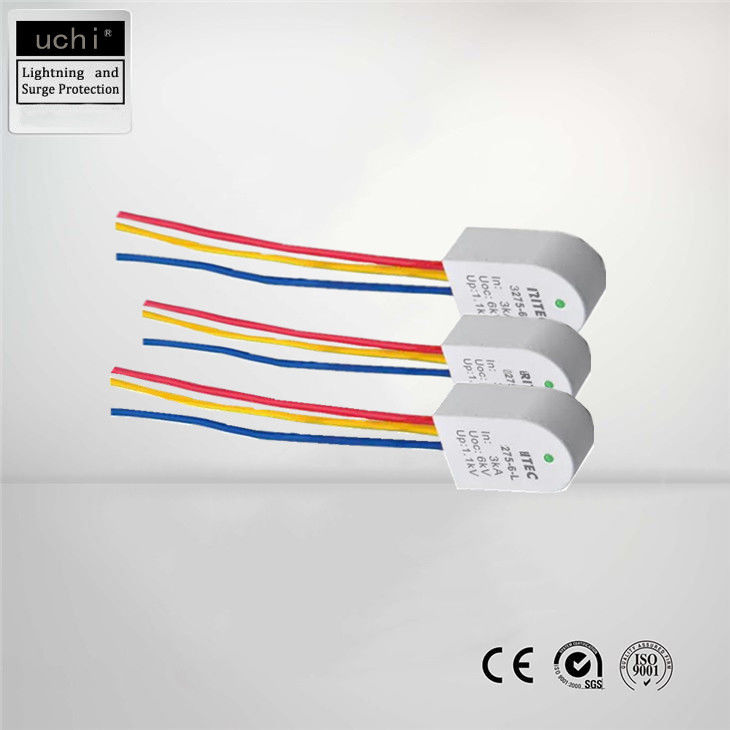

230VAC spd type 3 , Surge Protector For Led Lights For Commercial Applications
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | Uchi |
| Certification: | CE / SGS / ISO9001 |
| Model Number: | LED Surge Protection Device |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 piece / pieces |
|---|---|
| Price: | Negotiate Ex-work / FOB price |
| Packaging Details: | Export package |
| Delivery Time: | 8-15 days after payment |
| Payment Terms: | TT / LC |
| Supply Ability: | 50000 pieces per month |
|
Detail Information |
|||
| Brand Name: | Uchi | Name: | LED Lighting Surge Protection Device |
|---|---|---|---|
| In: | 3kA | Nominal A.c.voltage (power Supply) [UN: | 230V |
| AC: | 275VDC | Material: | Thermoplastic UL94-V0 |
| Standard: | IEC 61643-11 | Classification: | Class III |
| Degree Of Protection: | IP20 | Structure: | WIth All Kinds Of Electronics Components |
| Interface Type: | 3 Wires | ||
| High Light: | Commercial Applications spd type 3,230VAC surge protector for led lights,Class 3 surge protector for led lights |
||
Product Description
230VAC spd type 3 , Surge Protector For Led Lights For Commercial Applications
Class III Type 3 LED Lighting Surge Protection Device For Commercial Applications
Lightning protection
| LED Surge Protection Device | |
| SPD classification according to EN61643-11 | Type 3 |
| SPD classification according to IEC 61643-11 | Class III |
| Nominal a.c. voltage Un | 230V |
| Max. continuous operating a.c. voltage Uc | 275V |
| Max. continuous operating d.c. voltage Uc | 300V |
| Nominal discharge current (8/20us) In | 3kA |
| Combined impulse Uoc | 6kV |
| Voltage protection level Up | ≤1200V |
| Response time tA | ≤25ns |
| Operating temperature range Tu | -40℃—80℃ |
| Operating state / fault indication | LED |
| For mounting on | 35mm Din rail |
| Enclosure materail | Thermal plastic UL94-V0 |
| Degree of protection | IP20 |
Summary:
Lightning arrester is a series of power surge protection products designed for LED outdoor lighting system. It can effectively protect LED outdoor lighting power supply system against lightning strikes. It is widely used in LED lamps, tunnel lights, outdoor landscape lights and many other outdoor Lighting system.
- New designed LED lighting surge protection module.
- With LED indicator in product.
- specifically for outdoor and commercial LED lighting applications, LED signage and traffic light manufacturers, including roadway lighting, parking garage lighting, wash wall lighting, traffic lighting, flood lighting, digital signage, street lightning, and tunneal lighting.
- 20kA lightning surge protection.
- Metal oxide varistor (MOV) thermal protection.
- Parallel connected and series connected SPD options.
- With built-in thermal disconnect function.
- Full protection mode.
Main Character:
• Single-phase flexible surge protection
• High discharge capacity, quick response
• Low voltage protection level
Features
- Protection class: Type 3, Class III.
- High performance varistor with thermal disconnection tripping device.
- Nominal AC Voltage, 230V.
- Nominal Discharge current: 5kA.
- Rated to IP20.
-
Applicable to class I or II lamps.
-
Built in protection mode: L-N, L-PE,N-PE.
-
Built in thermal separation function for higher security.
-
Parallel isolation design, excellent protectionperformance.
-
Excellent surge resistance and very low residual voltage.
-
The product is small and convenient for embedded installation.
