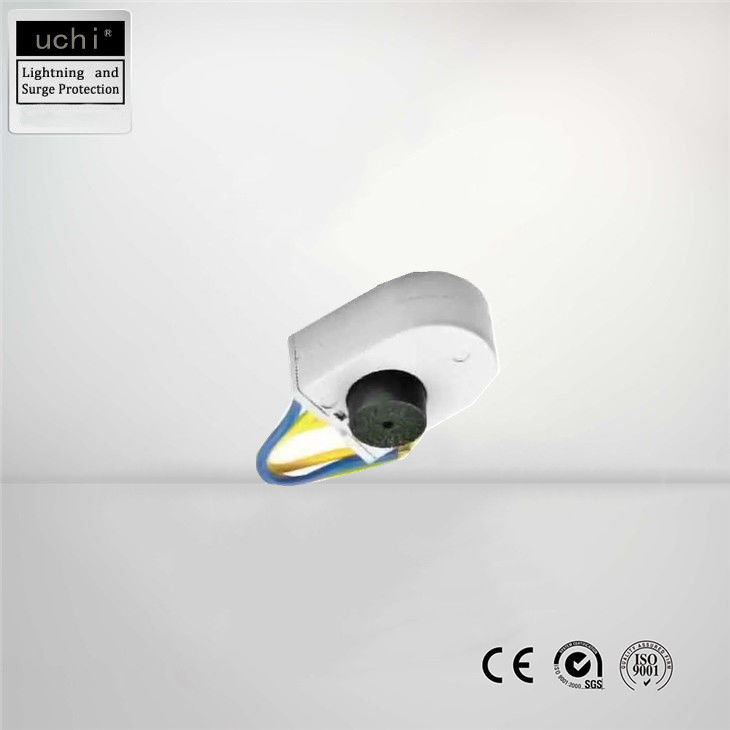

• Voltage Protection Level Up 1200V Spd For Led Lighting , Ac Spd Single Phase
Voltage Protection Level Up 1200V Spd For Led Lighting , Ac Spd Single Phase

Voltage Protection Level Up 1200V Spd For Led Lighting , Ac Spd Single Phase

Product Details:

Place of Origin: Dongguan China
Brand Name: Uchi
Certification: CE / SGS / ISO9001
Model Number: LED Surge Protection Device

Payment & Shipping Terms:

Minimum Order Quantity: 100 piece / pieces
Price: Negotiate Ex-work / FOB price
Packaging Details: Export package
Delivery Time: 8-15 days after payment
Payment Terms: TT / LC
Supply Ability: 50000 pieces per month
Get Best Price Contact Now

Detail Information

Brand Name: Uchi Name: LED Surge Protector
Warranty: 3 Years In: 5kA
Type: Class III Nominal A.c.voltage (power Supply) [UN: 230V
Material: Thermoplastic UL94-V0 Application: Industrial
Voltage Protection Level Up: ≤1200V
High Light:

1200V ac spd single phase

,

CE spd for led lighting

,

Single Phase spd for led lighting

Product Description

Voltage Protection Level Up 1200V Spd For Led Lighting , Ac Spd Single Phase

Voltage Protection Level Up 1200V DC Surge Protection Device For LED Street Lighting


Lightning protection



  LED Surge Protection Device
SPD classification according to EN61643-11 Type 3
SPD classification according to IEC 61643-11 Class III
Nominal a.c. voltage Un 230V
Max. continuous operating a.c. voltage Uc 275V
Max. continuous operating d.c. voltage Uc 300V
Nominal discharge current (8/20us) In 5kA
Combined impulse Uoc 10kV
Voltage protection level Up ≤1200V
Response time tA ≤25ns
Operating temperature range Tu -40℃—80℃
Operating state / fault indication BEEP
For mounting on 35mm Din rail
Enclosure materail Thermal plastic UL94-V0
Degree of protection IP20




Summary:



Used for LED power source fine protection. Can be soldered with parallel connection on to the PCB (Printed Circuit Board) or onto the external power source of electronic equipment to protect from power surges. Designed according to IEC 61643-11 / EN 61643-11 / GB 18802.1 standard, applied in SPD class III (Class D) for fine protection of electronic equipment. LED drivers etc.



Main Character:



• Single-phase flexible surge protection

• High discharge capacity, quick response

• Low voltage protection level

• It provides surge protection up to 6Ka.
• EN 61643-11, IEC 61643-11 compliance.
• It is designed to operate through single phase.
• The operating condition of the arrester is signaled by buzzer.



Features

  • Protection class: Type 3, Class III.
  • High performance varistor with thermal disconnection tripping device.
  • Nominal AC Voltage, 230V.
  • Nominal Discharge current: 5kA.
  • Rated to IP20.
  • Surge protectors are used to guard sensitive equipments from voltage spike.
Application

• Prevent costly outages, time-consuming repair work and expensive replacement of the luminaires.
• Used in a large number of applications where overall exposure to atmospheric phenomena is generally high: street lighting, tunnels, public lighting, stadiums, industries, etc.
• For LED applications prevent the destruction of sensitive ballasts caused by overload.
  • Voltage Protection Level Up 1200V Spd For Led Lighting , Ac Spd Single Phase 0
    FAQ



    Q1: Are you a factory or a trade company?
    A: We are the factory.


    Q2: Where are your products distributed?
    A: Our products are distributed all over the world, Main market are Europe, North America, the United Arab Emirates, Africa and so on.


    Q3: Can I have a sample?
    A: Yes, but according to our company's policy, we provided free samples, while you should pay the freight fee; the sample can be delivered by TNT/DHL/UPS/FEDEX.


    Q4: Which port is the nearest from you?
    A: Guangzhou port or Shenzhen Port or Hong Kong port.


    Q5: What's your lead time?
    A: Sample lead time: 3~5 working days.
    Mass production: usually 10~30days.
    For big orders, honestly, it depends on the order quantity and designs.


    Q6: When can I get the price?
    A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry as priority.


    Q7: Can you do the design for us?
    A: Yes, we have a professional team having rich experience in molding design, electrical system developing and manufacturing. Please just tell us your ideas and we will help you to carry out your ideas into a perfect artwork. You can pay for the molding fee and own the mold by yourself or we can cooperate on the molding.


    Q8: OEM & ODM are accepted or not?
    A: OEM&ODM are welcome.
