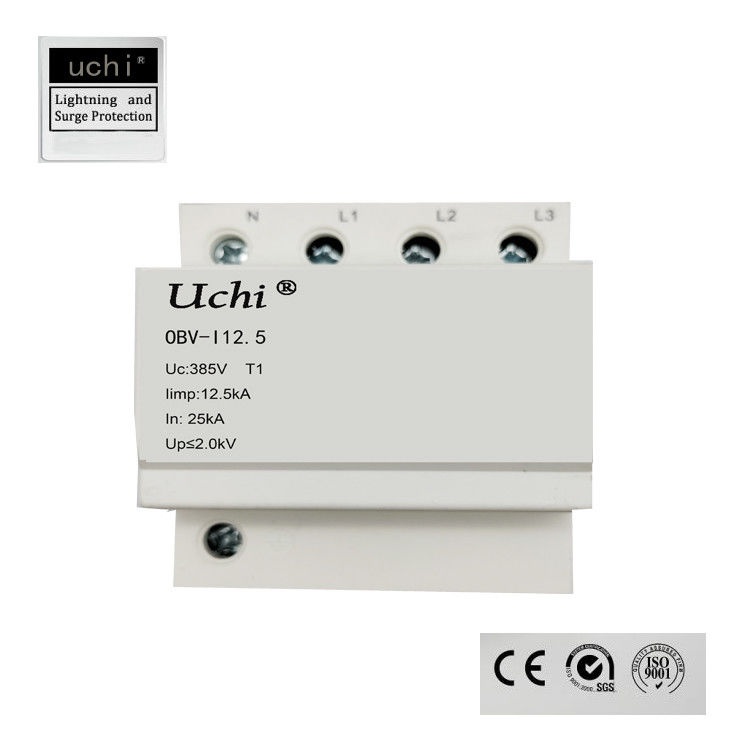

30kA 3 Phase Surge Protection Device Lower Protection Level

30kA 3 Phase Surge Protection Device Lower Protection Level

Product Details:

Place of Origin: Dongguan China
Brand Name: Uchi
Certification: CE / SGS / ISO9001
Model Number: OBV-I30

Payment & Shipping Terms:

Minimum Order Quantity: 200 piece
Price: Negotiate
Packaging Details: export package / Negotiate
Delivery Time: 5-15 days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 60000 pieces per month
Get Best Price Contact Now

Detail Information

Uc: 320V Condition: 100% Original
CertificationCE,CQC: CE / CQC / SGS System Voltage: 220V
Environment Temperature: (-40℃~+80℃) Status Indicator: Green(good)/red(need Replacement)
Response Time (L-N): ≤100ns Protection Rating: IP 20
Iimp(10/350μs): 30kA Mounting: 35mm Din Rail
Power System: 1-N/E, Single Phase Up(voltage Protection Level): 1.9kV

Product Description

30kA 3 Phase Surge Protection Device Lower Protection Level

Lower Protection Level 30kA Surge Protector For 320V N-PE System



OBV-I30 data:

Uc(maximum continuous operating voltage) 320V
Up(voltage protection level) ≤1.9kv
suitable power system 1-N/E, single phase
Response time ≤100ns
Indication LED indication
Housing Material thermoplastic material
Housing self-extinguishing class UL94_V0
Temperature range -40℃+70℃
humidity range 5%RH~95%RH
Elevational ≤2000m
Method of connecting wire Parallel Connect
Thread Dimensions 4~35mm2
Mounting method DIN:35mm
IP(degree of protection of enclosure) IP20
Follow up standard IEC 61643-11



Features:
1. High flow capacity, discharge capacity of 25/30kA (10/350μs)
2. Suitable for the first level protection Low limit voltage, good protection effect, no continuous current generation, no impact on the power grid
3. There is no spark in the process of lightning strike, which can be used in a variety of complex environments
4. Built-in thermal tripping protection device, can be disconnected in time, safe and reliable

5. LED status indicator, can directly monitor the performance of internal circuit
6. Small size, easy to install and use



Advantages:

1. Five years of hard work to develop   We spent 5 years working on developing SPD.
2. The failure indication window is electronic    Electronic failure indication window
3. The flow capacity of the traditional structure is 25kA, now it is improved to 30kA(10/350μs).





Design philosophy

The product is a single-phase switching surge protector designed and produced in strict accordance with IEC61643 standards. It passed the Ⅰ test (T1), the flow capacity is large, especially suitable for non-exposed, exposed environment first level lightning overvoltage protection. The protection chip adopts multi-gap cermet protection device to improve the arc discharge voltage. When the lightning overvoltage passes, the peak voltage of the power supply is lower than the arc discharge voltage of the module, it will stop working and extinguish the arc and resume the off state. Therefore, the products using this technology can not only reliably protect the lightning strike and the operating overvoltage of the power system, but also effectively solve the continuous current problem of the switch surge protector, without bringing impact to the power grid.
