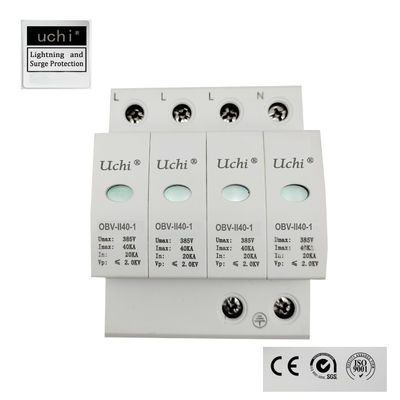

IP20 20kA Surge Protective Device With Round Indication Window
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | Uchi |
| Certification: | CE / SGS / ISO9001 |
| Model Number: | OBV-II40-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 piece |
|---|---|
| Price: | Negotiate |
| Packaging Details: | export package / Negotiate |
| Delivery Time: | 5-15 days after payment |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 60000 pieces per month |
|
Detail Information |
|||
| Uc: | 385V | Condition: | 100% Original |
|---|---|---|---|
| CertificationCE,CQC: | CE / CQC / SGS | System Voltage: | 220V |
| Environment Temperature: | (-25℃~+80℃) | Status Indicator: | Green-OK; Red-replace |
| Response Time (L-N): | ≤25ns | Protection Rating: | IP 20 |
| In(8/20μs): | 20kA | Imax(8/20μs): | 40kA |
| Up: | 2.0kV | Pole: | 4 Poles |
| SPD Type: | Voltage Limiting Type SPD | Material: | Thermoplastic UL94-V0 |
| Indication: | Round Indication Window | ||
| High Light: | 20kA Surge Protective Device,IP20 Surge Protective Device,Round Indication Window SPD Device |
||
Product Description
IP20 20kA Surge Protective Device With Round Indication Window
Power System 20kA Surge Protective Device With IP20 Round Indication Window
OBV-II40-1 data:
| Uc(maximum continuous operating voltage) | 385V |
| Imax(maximum discharge current) | 40kA |
| In(nominal discharge current for class II test) | 20kA |
| Up(voltage protection level) | ≤2.0kv |
| Combination | 2+0;1+1;3+0;4+0;3+1 |
| response time | ≤25ns |
| Signal deterioration indication | Red: replace Green:ok |
| Housing Material | thermoplastic material |
| Housing self-extinguishing class | UL94_V0 |
| Temperature range | -40℃～+70℃ |
| humidity range | 5%RH～95%RH |
| Elevational | ≤2000m |
| Method of connecting wire | Parallel Connect |
| Thread Dimensions | 4～35mm2 |
| Mounting method | DIN:35mm |
| IP(degree of protection of enclosure) | IP20 |
| Follow up standard | IEC 61643-11,GB/T 18802.1 |
Product design standards:
this product is designed in accordance with the relevant IEC standards, product performance in accordance with IEC61643.11,GB 18802.1-2011 "low voltage surge protector (SPD) - Part 1: surge protector performance requirements and test methods for low voltage distribution system" national standard requirements.
Product structure:
this product adopts independent modular design, good sealing, suitable for 35mm guide rail type installation. The lightning protection module of each line adopts temperature control circuit breaking technology and has over-current protection function. Lightning protection module when the deterioration of automatic tripping, can completely avoid fire risk. The lightning protection module has a remote alarm interface, which is convenient for remote monitoring
Features:
this product has the characteristics of low residual pressure, fast response speed, large flow capacity (the maximum discharge current Imax is 40kA/ pole), long service life, simple maintenance, easy installation and so on.
Scope of application:
generally installed in the building low-voltage main distribution cabinet/box, can protect installed in the building LPZ1 and LPZ2 boundary distribution system of all kinds of power supply into the line end, withstand the impact voltage class II power supply equipment.
