2P Class II Surge Arrester 275V For HVAC Applications
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | Uchi |
| Certification: | CE / SGS / ISO9001 |
| Model Number: | OBV-II40kA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 piece |
|---|---|
| Price: | Negotiate |
| Packaging Details: | export package / Negotiate |
| Delivery Time: | 5-15 days after payment |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 60000 pieces per month |
|
Detail Information |
|||
| Uc: | 385V | Condition: | 100% Original |
|---|---|---|---|
| CertificationCE,CQC: | CE / CQC / SGS | Environment Temperature: | (-25℃~+60℃) |
| Status Indicator: | Green-OK; Red-FAIL | Response Time (L-N): | ≤25ns |
| Protection Rating: | IP 20 | In(8/20μs): | 20kA |
| Lightning Protection: | Class II | Up: | 2.0kv |
| Poles: | 1P,2P,3P,4P | Size: | Narrow(18mm For 2 Poles, 36mm For 4 Poles) |
| High Light: | Surge Arrester 275V,HVAC Applications Surge Arrester,2P Surge Protection Device SPD |
||
Product Description

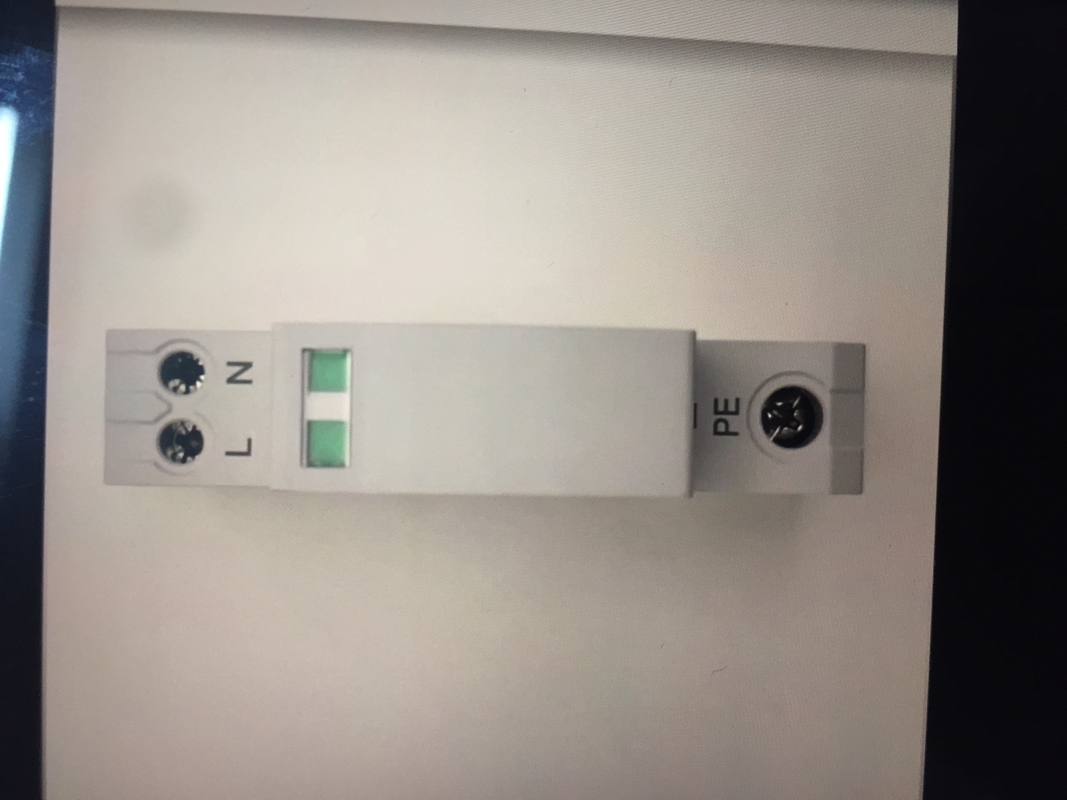

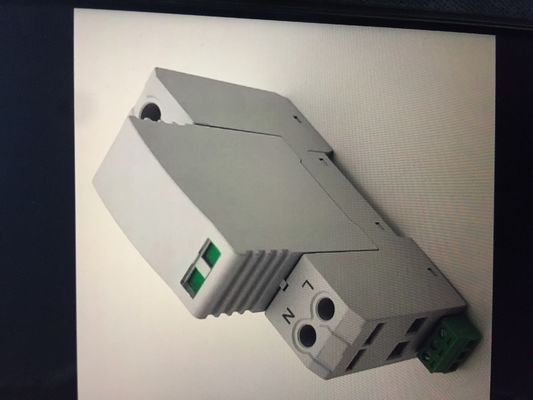

2P Class II Surge Arrester 275V For HVAC Applications
Class II Surge Arrester 275V with narrow size 18mm 2P for power system
Feature&Benefits
- Easy installation or retrofit
- Din-rail mountable
- Fail-safe /self-protected designRemote indicator (optional) with 3pin NO/NC contact
- IP20 finger-safe design
Visual indicator
- Small foot print
Application
● AC/DC distribution
● Power supplies
● Industrial automation
● Telecommunications
● Motor controls systems
● PLC applications
● Power transfer equipment
● HVAC applications
● AC drives
● UPS systems
● Security systems
● IT/Data centers
Tip1:How can we distinguish the quality of the lightning arrester?
1. It can be seen from the reaction time: determine whether the lightning arrester can respond in time and quickly discharge the lightning current.
2. It can be seen from the insertion loss: this refers to the installation of a lightning protector, the impact of this lightning protector on the line, the smaller the better
3. It can be seen from the number of impact resistance: determines the service life of the lightning arrester. Generally, the gas discharge tube will not drop after being placed for a period of time. If you want to check its quality, you can use an adjustable high-voltage DC power supply to test .
First of all, you must determine what your power distribution system is like, whether it is TT, TN or IT system. After determining the power distribution system, you can choose the protection mode and wiring method of the lightning arrester to select the appropriate lightning arrester.
For example, TN-C uses 3P lightning protection device, TN-S uses 4P, TT uses 3P+N, etc.
Q: Can I get some samples?
A: Yes, Sample orders welcomed.
Q: Can I use my own Logo or design on goods?
A: Yes, Customized logo and design on mass production are available.
Q: What is the delivery time?
A: 3 days for samples, 7-15 days for mass production.
Q: What is the payment term?
A: T/T, L/C at sight, West union , Paypal, etc.
