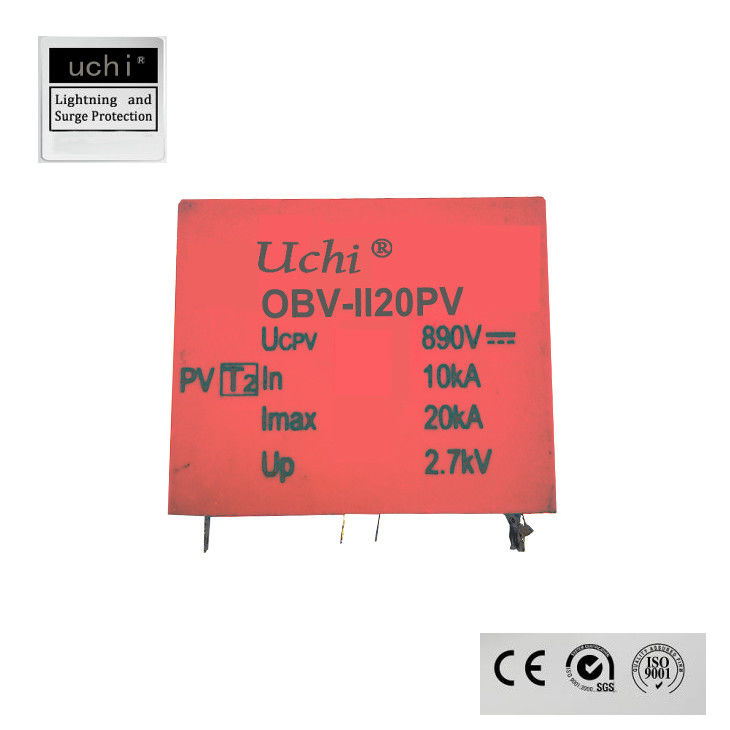

PV System PCB On Board Design SPD Device With Thermal Response

PV System PCB On Board Design SPD Device With Thermal Response

Product Details:

Place of Origin: Dongguan China
Brand Name: Uchi
Certification: CE / SGS / ISO9001
Model Number: OBV-II20PV

Payment & Shipping Terms:

Minimum Order Quantity: 200 piece
Price: Negotiate
Packaging Details: export package / Negotiate
Delivery Time: 5-15 days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 60000 pieces per month
Get Best Price Contact Now

Detail Information

Uc: 890VDC Condition: 100% Original
CertificationCE,CQC: CE / CQC / SGS Environment Temperature: (-40℃~+80℃)
Status Indicator: Green-OK; Red-fail Response Time (L-N): ≤25ns
Protection Rating: IP 20 In(8/20μs): 10kA
Imax(8/20μs): 20kA Lightning Protection: Class 2
Up: 2.7KV Housing Material: Thermoplastic Material UL94_V0
High Light:

PCB On Board Design SPD Device


Thermal Response SPD Device


PV System SPD Surge Protector

Product Description

PV System PCB On Board Design SPD Device With Thermal Response

PCB On Board Design Surge Protection Device For PV System With Thermal Response​



Ucpv(maximum continuous operating voltage) 890V
Imax(maximum discharge current) 20kA
In(nominal discharge current for class II test) 10kA
Up(voltage protection level) ≤2.7kv
response time ≤25ns
Housing self-extinguishing class UL94_V0
Temperature range -40℃+80℃



Product Application:

This kind of surge protection modules which are heavy MOV based devices and are constructed with Prosurge thermal protection and arc extinguishing technology, can be easily integrated in or mounted on PCBs. They are the best choice for global customers to develop PV SPD at minimum cost.


SPD Module Features
1. Type 2 SPD for PV/ photovoltaic system.
2. Rating: (1)Max. permitted DC voltage(Vpvdc): 85V -890Vdc; (2)Surge capacity(8/20 μs): 20kA;
3. Quick thermal response and perfect circuit cutoff function due to special thermal disconnector design with arc extinguishing device
4. Wide operating temperature range and high reliability.
5. High surge current capability and low leakage current.
6. Provide a number of ways to use on PCB, such as permanent soldering or pluggable.


SPD Module Ratings
Max. permitted DC voltage (Vpvdc): 85V~890Vdc
Surge capacity (8/20μs): 20kA


Product Features:

1. Prevent low voltage equipment from overvoltage interference, according to GB18802.1-2011, IEC61643-11 standard T2 surge protector
2. PCB on board design, easy to install
3. Onboard surge protector is used as a secondary power protector
4. 20kA onboard surge protector with high lightning discharge capability and response time only ns
5. Double thermal tripping device, provide reliable protection, and signal reminder function
6. When a fault occurs, the detection window changes from green to red
7. Onboard lightning protection device saves material and installation cost
8. Can be customized for higher voltage level of single pole
9. No power consumption, high reliability, long life
10. Small space, can be vertical, horizontal PCB board lightning protection device



Uchi High Energy Varistor Series feature improved creep and strike capability to minimize breakdown along the package surface, a package design that provides complete electrical isolation of the disc subassembly, and rigid terminals to ensure secure wire contacts.
Welcome to buy the high energy varistor transient surge suppressors are heavy-duty industrial metal-oxide varistors (movs) designed to provide surge protection for motor controls and power supplies used in oil-drilling, mining,transportation equipment and other heavy industrial ac line applications with our professional manufacturers and suppliers. We are one of the famous brands and we are equipped with a productive factory at your service. Please be free to enjoy our good price and service.
