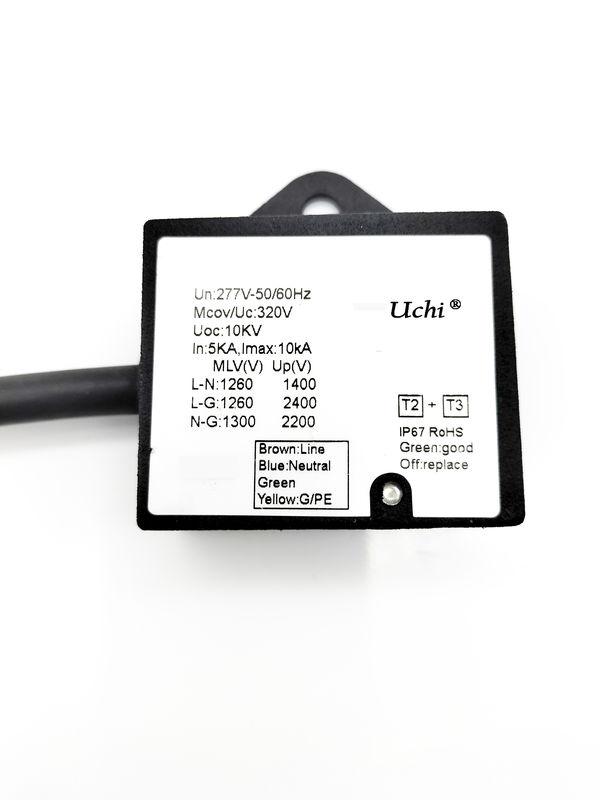

IP67 320VAC Type 2 Type 3 SPD Surge Protector For LED Light

IP67 320VAC Type 2 Type 3 SPD Surge Protector For LED Light

Product Details:

Place of Origin: Dongguan China
Brand Name: Uchi
Certification: CE / SGS / ISO9001
Model Number: YC-LED lightning

Payment & Shipping Terms:

Minimum Order Quantity: 100 piece / pieces
Price: Negotiate Ex-work / FOB price
Packaging Details: Export package
Delivery Time: 8-15 days after payment
Payment Terms: TT / LC
Supply Ability: 50000 pieces per month
Get Best Price Contact Now

Detail Information

Brand Name: Uchi Name: YC-LED Lightning
In: 5kA Imax: 10kA
Un: 277V Uc: 320V
Material: Thermoplastic UL94-V0 Standard: IEC 61643-11
Classification: Class II+III Degree Of Protection: IP67
Interface Type: 3 Wires
High Light:

Type 2 SPD Surge Protector


IP67 SPD Surge Protector


320VAC Type 2 Surge Protector

Product Description

IP67 320VAC Type 2 Type 3 SPD Surge Protector For LED Light


320VAC Type 2 Type3 Surge Protector For Led Lights With IP67


Un 277V-50/60hz
Mcov/Uc(maximum continuous operating voltage) 320V
Imax(maximum discharge current) 10kA
In(nominal discharge current for class II test) 5kA
Signal indication green:good
off: replace
IP(degree of protection of enclosure) IP67




1.Front end with mounting hole
2.Cable output in parallel
3.Small volume surge protector Potting products
4.High protection grade IP67
5.Plastic shell UL94_V0
6.CE certification
7.Can be customized wire type, wire length, process, etc

8.Apply to class I or class II lamps
9.Built-in protection mode :L-N, L-PE/G, N-PE/G
10.Built - in thermal separation function, higher safety
11.Parallel connection mode, easy maintenance
12.Excellent surge resistance, low residual pressure


The product application
1.Digital signage
2.Flood lighting
3.Street lighting
4.Road lighting
5.Parking lot lighting
6.Traffic lighting
7.Tunnel lighting
8.Wash the wall lamp
9.AC - LED lighting


Explanation of Common Parameters

1.Nominal discharge current (In):

crest value of the current through the SPD having a current waveshape of 8/20
2.Maximum continuous operating voltage(Uc):

maximum r.m.s. voltage, which may be continuously applied to the SPD's mode of protection
3.Maximum discharge current(Imax):

crest value of a current through the SPD having an 8/20 waveshape and magnitude according to the manufacturers specification. Imax is equal to or greater than In
4.Voltage protection level(Up):

maximum voltage to be expected at the SPD terminals due to an impulse stress with defined voltage steepness and an impulse stress with a discharge current with given amplitude and waveshape
