Imax 65kA Surge Protection Device IP20 With Four PE Location

Imax 65kA Surge Protection Device IP20 With Four PE Location

Product Details:

Place of Origin: Dongguan China
Brand Name: Uchi
Certification: CE / SGS / ISO9001
Model Number: OBV-II65

Payment & Shipping Terms:

Minimum Order Quantity: 200 piece
Price: Negotiate
Packaging Details: export package / Negotiate
Delivery Time: 5-15 days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 60000 pieces per month
Get Best Price Contact Now

Detail Information

Uc: 385V Condition: 100% Original
CertificationCE,CQC: CE / CQC / SGS System Voltage: 220V
Environment Temperature: (-25℃~+80℃) Status Indicator: Green-OK; Red-fail
Response Time (L-N): ≤25ns Protection Rating: IP 20
In(8/20μs): 30kA Imax(8/20μs): 65kA
Lightning Protection: Class 2 Up: 2.0KV
High Light:

Imax 65kA Surge Protection Device


IP20 Surge Protection Device


Four PE Location SPD Device

Product Description

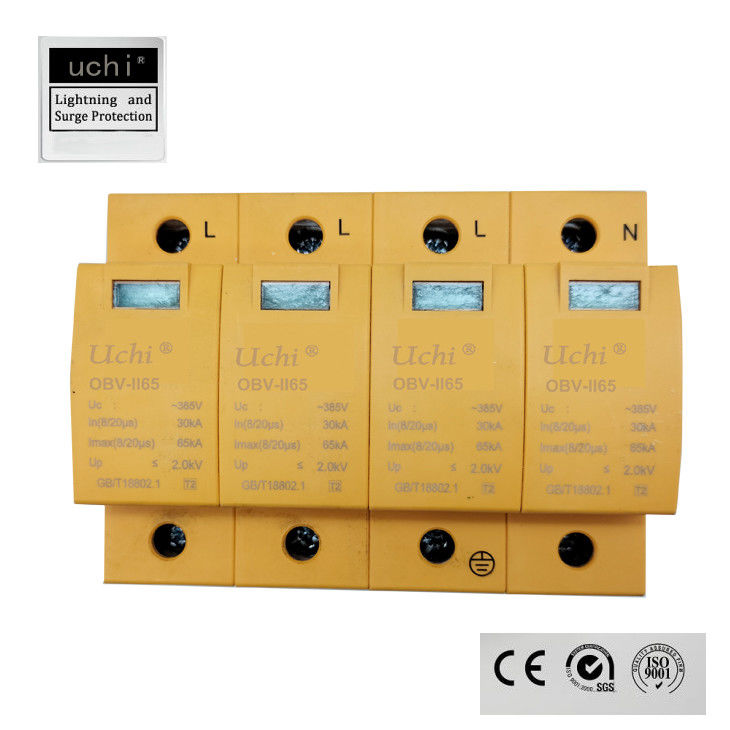

Imax 65kA Surge Protection Device IP20 With Four PE Location

Imax 65kA Surge Protection Device With Four PE Location Preventing Module Vibration


Uc(maximum continuous operating voltage) 385V
Imax(maximum discharge current) 65kA
In(nominal discharge current for class II test) 30kA
Up(voltage protection level) ≤2.0kv
Combination 2+0;1+1;3+0;4+0;3+1
response time ≤25ns
Signal deterioration indication red: need replace
Housing Material thermoplastic material
Housing self-extinguishing class UL94_V0
Temperature range -40℃+75℃
humidity range 5%RH~95%RH
Elevational ≤2000m
Method of connecting wire (Parallel Connect
Thread Dimensions 4~35mm2
Mounting method DIN:35mm
IP(degree of protection of enclosure) IP20
follow up standard GB18802-1;IEC61643-1




The performance characteristics
1) The pressure-limiting design conforms to the test requirements of Type2;
2) A variety of combination methods to achieve differential touch and common mode protection functions;
3) High energy MOV, low residual voltage, high voltage protection level;
4) The disengaging device has an arc isolating device with strong overload capacity;
5) High continuous working voltage and large flow rate;
6) Quick response speed, no continuous flow;
7) Guide rail installation;
8) Enhanced nylon shell, IP20 protection level;
9) compact size, easy to install and use.

10) Each module is connected with rivets to prevent vibration

11) Four PE location and connection is convenient

12) Imax increased to 65kA



It is mainly used for lightning protection of all kinds of electric equipment such as distribution box in AC power supply system.
