Up 1.8kV Imax 40kA PA66 PBT Surge Protection Device SPD

Up 1.8kV Imax 40kA PA66 PBT Surge Protection Device SPD

Product Details:

Place of Origin: Dongguan China
Brand Name: Uchi
Certification: CE / SGS / ISO9001
Model Number: OBV-II40-2

Payment & Shipping Terms:

Minimum Order Quantity: 200 piece
Price: Negotiate
Packaging Details: export package / Negotiate
Delivery Time: 5-15 days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 60000 pieces per month
Get Best Price Contact Now

Detail Information

Uc: 385V Condition: 100% Original
CertificationCE,CQC: CE / CQC / SGS System Voltage: 220V
Environment Temperature: (-25℃~+80℃) Status Indicator: Green-OK; Red-fail
Response Time (L-N): ≤25ns Protection Rating: IP 20
In(8/20μs): 20kA Imax(8/20μs): 40kA
Lightning Protection: Class 2 Material: PA66 And PBT
Up: 1.8kV
High Light:

PA66 PBT Surge Protection Device SPD


Imax 40kA Surge Protection Device SPD


Up 1.8kV SPD Surge Protector

Product Description

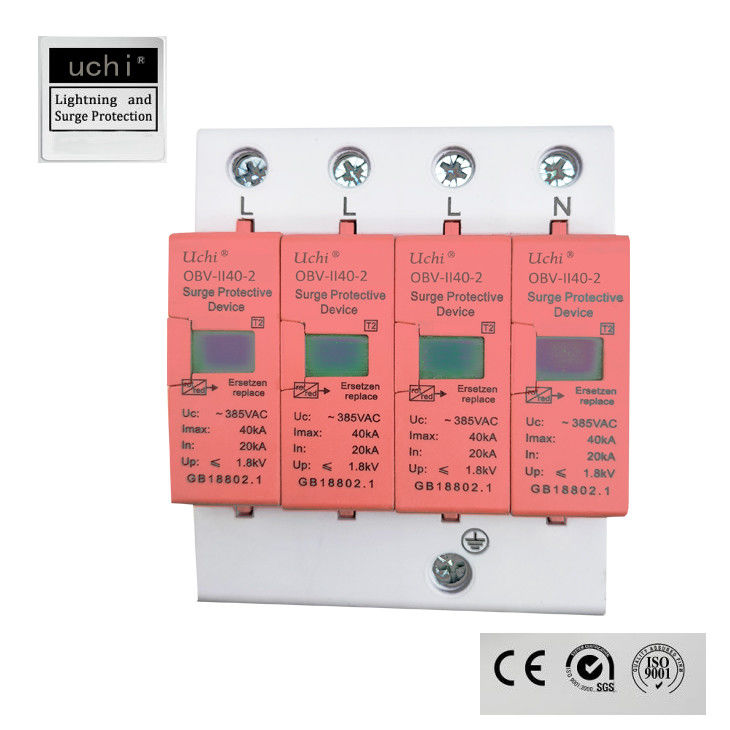

Up 1.8kV Imax 40kA PA66 PBT Surge Protection Device SPD

Up 1.8kV Imax 40kA SPD Surge Protection Device In PA66 And PBT Combined Material

Uc(maximum continuous operating voltage) 385V
Imax(maximum discharge current) 40kA
In(nominal discharge current for class II test) 20kA
Up(voltage protection level) ≤2.0kv
Combination 1-4P/3P+N
response time ≤25ns
Signal deterioration indication red: need replace
Housing Material thermoplastic material
Housing self-extinguishing class UL94_V0
Temperature range -40℃+80℃
humidity range ≤95%
Elevational ≤3000m
Method of connecting wire multiple
(Connect In Parallel )
Thread Dimensions L/N≥2.5mm2; PE≥6mm2
Mounting method 35mm standard rail installation
IP(degree of protection of enclosure) IP20
application standard GB18802-1;IEC61643-1



Main parameters:
Max. Continuous Operating Voltage UC: 385VAC
Nominal discharge current In(8/20μs) : 20kA
Maximum discharge current IMAX (8/20μs):40kA
Protection level Up:1.8kV Combination mode: 4P, 3P, 3+NPE

The material is combined with PA66 and PBT to ensure that the product can pass the temperature resistance test 2,

The appearance is smooth and smooth, the material is exquisite



Adopt the updated thermal escape technology, built-in thermal protection, short circuit fault automatic escape device, completely avoid fire;
Excellent performance, stable and reliable work;



The product belongs to T2 test class C/second level surge protector, suitable for the second level lightning protection of three-phase power distribution system.




4P structure, suitable for TN-S distribution system
3+NPE structure, suitable for TT distribution system
3P structure, suitable for TN-C and IT distribution system
