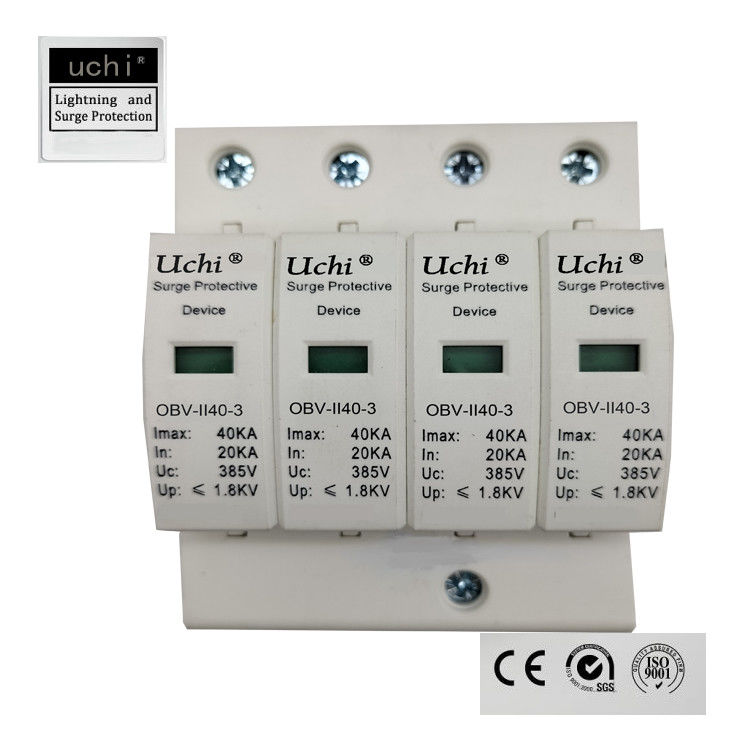

385V 40kA Surge Protector With Thermoplastic Housing

385V 40kA Surge Protector With Thermoplastic Housing

Product Details:

Place of Origin: Dongguan China
Brand Name: Uchi
Certification: CE / SGS / ISO9001
Model Number: OBV-II40-3

Payment & Shipping Terms:

Minimum Order Quantity: 200 piece
Price: Negotiate
Packaging Details: export package / Negotiate
Delivery Time: 5-15 days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 60000 pieces per month
Get Best Price Contact Now

Detail Information

Uc: 385V Condition: 100% Original
CertificationCE,CQC: CE / CQC / SGS System Voltage: 220V
Environment Temperature: (-25℃~+80℃) Status Indicator: Green-OK; Red-replace
Response Time (L-N): ≤25ns Protection Rating: IP 20
In(8/20μs): 20kA Imax(8/20μs): 40kA
Up: 1.8KV
High Light:

385V 40kA Surge Protector


Thermoplastic Housing 40kA Surge Protector


Thermoplastic Housing SPD Surge Protector

Product Description

385V 40kA Surge Protector With Thermoplastic Housing

Mature Technology 40kA Surge Protection Device Traditional Products


OBV-II40-3 data:

Uc(maximum continuous operating voltage) 385V
Imax(maximum discharge current) 40kA
In(nominal discharge current for class II test) 20kA
Up(voltage protection level) ≤1.8kv
response time ≤25ns
Signal deterioration indication green:OK; red:replace
Housing Material Red thermoplastic material
Housing self-extinguishing class UL94_V0
Temperature range -40℃+80℃
humidity range ≤95%
Elevational ≤3000m
Method of connecting wire multiple
(Connect In Parallel )
Thread Dimensions 1.5mm2~35mm2
Mounting method 35mm standard rail installation
IP(degree of protection of enclosure) IP20



Main parameters:
Max. Continuous Operating Voltage Uc: 385VAC (For other voltage levels,pls contact us)
Nominal discharge current In(8/20μs) : 20kA
Maximum discharge current Imax (8/20μs):40kA
Protection level Up:1.8kV Combination mode: 4P, 3P, 3+NPE

Traditional products, mature technology


Performance characteristics:
Adopt the latest thermal escape technology, built-in thermal protection, short circuit fault automatic cut off device, completely avoid fire;
The core components in good quality, excellent performance, stable and reliable work;



Scope of application:

The product belongs to T2 test class C/second level surge protector, suitable for the second level lightning protection of three-phase power distribution system.
