3 Pole MOV Surge Protection Low Capacitance ISO9001 Approved
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | Uchi |
| Certification: | CE / SGS / ISO9001 |
| Model Number: | OBV1-C40 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 piece |
|---|---|
| Price: | Negotiate |
| Packaging Details: | export package / Negotiate |
| Delivery Time: | 5-15 days after payment |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 60000 pieces per month |
|
Detail Information |
|||
| Name: | Lightning SPD | AC: | 275/320/385/440V |
|---|---|---|---|
| SPD To IEC 61643-1: | Class II | SPD To EN 61643-11: | Type 2 |
| Poles Number: | 3 Pole | CertificationCE,CQC: | CE / CQC / SGS |
| Environment Temperature: | (-40℃~+85℃) | Normal Discharge Current(8/20μs): | 20kA |
| Status Indicator: | Green(good)/red(need Replacement) | Response Time (L-N): | ≤25ns |
| High Light: | ISO9001 3 pole surge protector,Low Capacitance MOV Surge Protection,ISO9001 MOV Surge Protection |
||
Product Description

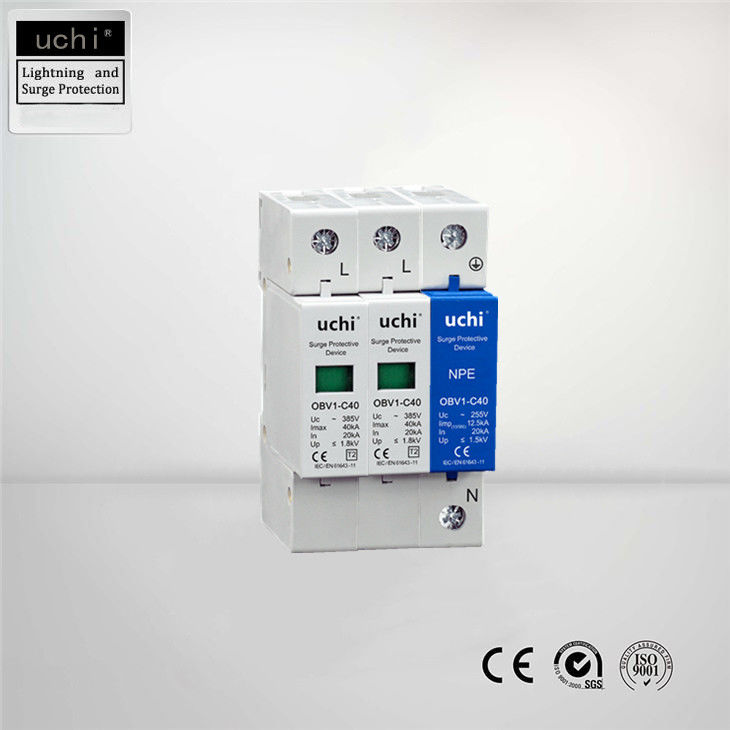

3 Pole Lightning SPD , -40℃~+85℃ Class II MOV Surge Protection
The surge arrestors OBV1-C40 meet the type 2 requirement class according to IEC 61643-11. These devices protect low-voltage consumer systems from overvoltages of all types and are available in single-pole to four-pole versions. The use of high-performance varistors permits a rapid response time and a low protection level, without any line follow current. If circumstances are uncertain and there is a risk of fire from an overload, the internal cut-off unit disconnects the arrestor from the mains if necessary. In addition, the QR code printed on the arrestor allows disary. In addition, the QR code printed on the arrestor allows direct access to the online installation instructions.
+ Connectable surge arrestor
+ High arresting capacity
+ Visual status display
+ Available with optional remote signalling
+ Vibration-proof
+ Simple standard hat rail mounting
+ Labelled connections
+ Voltage encoding
Technical Parameters
|
Model: OBV1-C40 |
|||
|
Maximum continuous voltage AC |
Uc |
V |
275/320/385/440 |
|
SPD to EN 61643-11 |
|
|
Type 2 |
|
SPD to IEC 61643-1 |
|
|
class II |
|
Nominal discharge current (8/20µs) |
In |
kA |
20 |
|
Maximum discharge current (8/20µs) |
Imax |
kA |
40 |
|
Voltage protection level |
Up |
kV |
<1,3/1,5/1,8/2,0 |
|
Response time |
tA |
ns |
<25 |
|
Maximum back-up fuse |
|
A |
125 |
|
Temperature range |
ϑ |
°C |
-40℃~+85℃ |
|
Protection rating |
|
|
IP 20 |
|
Max. cable cross-section flexible (fine-wire) |
|
mm² |
25 |
|
Max. cable cross-section rigid (single wire/multi-wire) |
|
mm² |
35 |
Feature:
1,Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage.
2,Protect transmission of Ethernet signals with 48V DC / 34V AC power supply circuits against
lightning induced surges.
3,Enhanced surge protection.
4,For mounting on 35mm DIN rails acc. to EN 60715
5,It can effectively ensure the equipments work properly
Application:
Advantage:
Technology SPD parameter(Note:According to user requirement ,can be customized Uc=140V,440V,550V,voltage range of range of the SPD):
| Type No. | Rated Voltage(V) Un | Continuous Voltage Uc(V~) | Standard Discharge Current In(KA) |
Max Discharge Current Imax(KA) |
Protection Level(KA~) | Response Time(ns) |
| DGM1(2)-D5 | 220/380 |
275/320 385/420 |
5 | 10 | 1.2 | ≤25 |
| DGM1(2)-D10 | 10 | 2 | 1.6 | |||
| DGM1(2)-C20 | 20 | 40 | 1.8 | |||
| DGM13-B30 | 30 | 60 | .2.2 | |||
| DGM3(4)-B40 | 10 | 80 | 2.4 | |||
| DGM(4)-B60 | 60 | 100 | 2.8 | |||
| DGM-N-PE | 220/255 | 40/60 | 60/80 | 1.2 | ≤100 |
