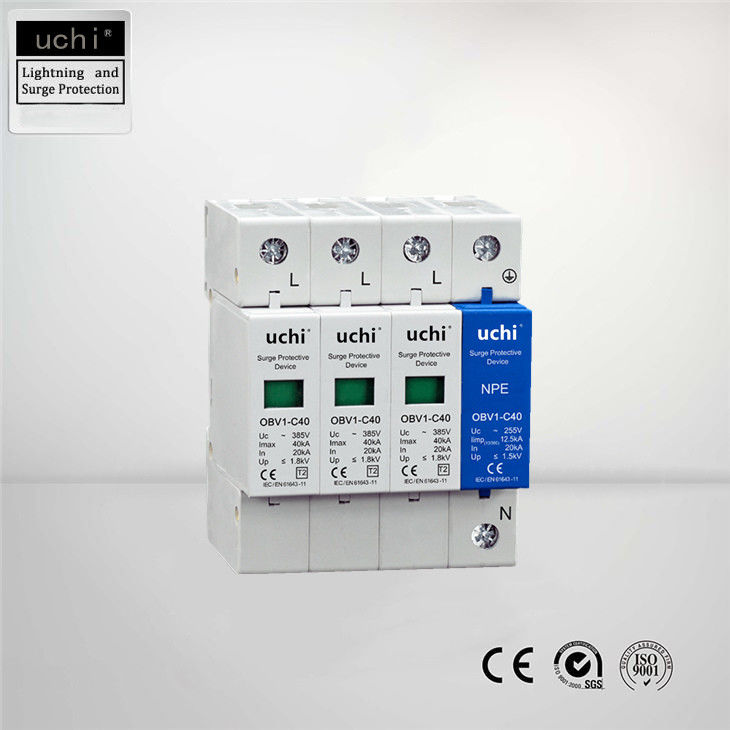

AC 320V Mov Surge Arrester , Class 2 Plug In Power Surge Protector
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | Uchi |
| Certification: | CE / SGS / ISO9001 |
| Model Number: | OBV1-C40 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 piece |
|---|---|
| Price: | Negotiate |
| Packaging Details: | export package / Negotiate |
| Delivery Time: | 5-15 days after payment |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 60000 pieces per month |
|
Detail Information |
|||
| AC: | 275/320/385/440V | SPD To IEC 61643-1: | Class II |
|---|---|---|---|
| CertificationCE,CQC: | CE / CQC / SGS | System Voltage: | 500/600VDC |
| Environment Temperature: | (-40℃~+85℃) | Normal Discharge Current(8/20μs): | 20kA |
| Status Indicator: | Green(good)/red(need Replacement) | Response Time (L-N): | ≤25ns |
| High Light: | Class 2 Plug In Power Surge Protector,mov surge arrester,AC 320V mov surge arrester |
||
Product Description
AC 275/320/385/440V Pluggable SPD, Plug-in SPD, MOV surge protection
Technical Parameters
|
Model: OBV1-C40 |
|||
|
Maximum continuous voltage AC |
Uc |
V |
275/320/385/440 |
|
SPD to EN 61643-11 |
|
|
Type 2 |
|
SPD to IEC 61643-1 |
|
|
class II |
|
Nominal discharge current (8/20µs) |
In |
kA |
20 |
|
Maximum discharge current (8/20µs) |
Imax |
kA |
40 |
|
Voltage protection level |
Up |
kV |
<1,3/1,5/1,8/2,0 |
|
Response time |
tA |
ns |
<25 |
|
Maximum back-up fuse |
|
A |
125 |
|
Temperature range |
ϑ |
°C |
-40℃~+85℃ |
|
Protection rating |
|
|
IP 20 |
|
Max. cable cross-section flexible (fine-wire) |
|
mm² |
25 |
|
Max. cable cross-section rigid (single wire/multi-wire) |
|
mm² |
35 |
Feature:
1,Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage.
2,Protect transmission of Ethernet signals with 48V DC / 34V AC power supply circuits against
lightning induced surges.
3,Enhanced surge protection.
4,For mounting on 35mm DIN rails acc. to EN 60715
5,It can effectively ensure the equipments work properly
Application:
Advantage:
Technology SPD parameter(Note:According to user requirement ,can be customized Uc=140V,440V,550V,voltage range of range of the SPD):
| Type No. | Rated Voltage(V) Un | Continuous Voltage Uc(V~) | Standard Discharge Current In(KA) |
Max Discharge Current Imax(KA) |
Protection Level(KA~) | Response Time(ns) |
| DGM1(2)-D5 | 220/380 |
275/320 385/420 |
5 | 10 | 1.2 | ≤25 |
| DGM1(2)-D10 | 10 | 2 | 1.6 | |||
| DGM1(2)-C20 | 20 | 40 | 1.8 | |||
| DGM13-B30 | 30 | 60 | .2.2 | |||
| DGM3(4)-B40 | 10 | 80 | 2.4 | |||
| DGM(4)-B60 | 60 | 100 | 2.8 | |||
| DGM-N-PE | 220/255 | 40/60 | 60/80 | 1.2 | ≤100 |
