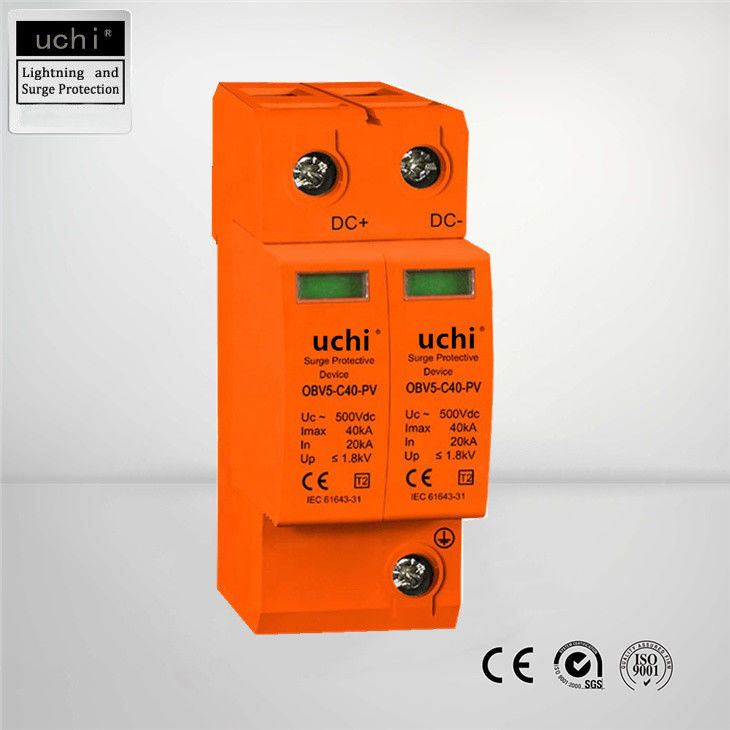

Name: 500V PV Lightning Surge Protector Poles Number: 2P
In: 20KA Imax: 40KA
Connection: By Screw Terminals: 4-25 Mm2 Uc: 530Vdc-1060 Vdc
Network Voltage: 500V-1000V Mounting: Symmetrical Rail 35 Mm
CertificationCE,CQC: CE / CQC / SGS Application: PV System
High Light:

spd for lightning protection

,

500V PV Surge Protector

,

Screw Terminals Connection PV Surge Protector

Product Description

500V PV Lightning Surge Protector 20-40KA Surge Protection For PV System



OBV5-C40-PV



Prewired modular complete unit for use in photovoltaic systems consisting of a base part and plug-in protection modules

Combined disconnection and short-circuiting device with safe electrical isolation in the protection module prevents fire damage resulting from d.c. switching arcs (patented SCI principle)

Tried and tested fault-resistant Y circuit of the OBV6-C40-PV prevents damage to the surge protective device in case of insulation faults in the generator circuit.

Integrated d.c. fuse allows safe replacement of protection modules without arc formation.


Technical Parameters



Model: OBV5-C40-PV
Network voltage 500Vdc 600Vdc 800Vdc 900Vdc 1000 Vdc
Max. operating voltage Uc 530Vdc 630Vdc 840Vdc 950Vdc 1060 Vdc
Nominal discharge current ln 20kA
Max. discharge current lmax 40kA
Protection level (at In) Up 1.8kV 2.5kV 2.8kV 3.0kV 3.2kV
Disconnector
Thermal Disconnector Internal
Mechanical characteristics
Connection by screw terminals: 4-25 mm2
Disconnection indicator 1 mechanical indicator by pole
Mounting symmetrical rail 35 mm
Operating temperature -40/+85°C
Protection class IP20
Standards compliance
NF EN 61643-11 France Parafoudre Basse Tension - Essais Classe II
IEC 61643-1 International Low Voltage SPD - Test Class II
EN 61643-11 Europe Parafoudre Basse Tension - Essais Classe II



Feature&Benefits

-Easy installation or retrofit

-Din-rail mountable
-Fail-safe /self-protected designRemote indicator (optional) with 3pin NO/NC contact
-IP20 finger-safe design

Visual indicator
-Small foot print

Application


●AC/DC distribution
●Power supplies
●Industrial automation
●Telecommunications
●Motor controls systems
●PLC applications
●Power transfer equipment
●HVAC applications
● AC drives
●UPS systems
●Security systems
●IT/Data centers

Others


Technology SPD parameter(Note:According to user requirement ,can be customized Uc=140V,440V,550V,voltage range of range of the SPD):

Type No. Rated Voltage(V) Un Continuous Voltage Uc(V~) Standard Discharge Current In(KA)

Max Discharge Current
Imax(KA)

Protection Level(KA~) Response Time(ns)
DGM1(2)-D5 220/380

275/320
385/420

5 10 1.2 ≤25
DGM1(2)-D10 10 2 1.6
DGM1(2)-C20 20 40 1.8
DGM13-B30 30 60 .2.2
DGM3(4)-B40 10 80 2.4
DGM(4)-B60 60 100 2.8
DGM-N-PE 220/255 40/60 60/80 1.2 ≤100



Tip1:How can we distinguish the quality of the lightning arrester?

1. It can be seen from the reaction time: determine whether the lightning arrester can respond in time and quickly discharge the lightning current.

2. It can be seen from the insertion loss: this refers to the installation of a lightning protector, the impact of this lightning protector on the line, the smaller the better

3. It can be seen from the number of impact resistance: determines the service life of the lightning arrester. Generally, the gas discharge tube will not drop after being placed for a period of time. If you want to check its quality, you can use an adjustable high-voltage DC power supply to test .



Tip2.What skills should lightning protectors have in the selection?

1.Confirm power supply system
First of all, you must determine what your power distribution system is like, whether it is TT, TN or IT system. After determining the power distribution system, you can choose the protection mode and wiring method of the lightning arrester to select the appropriate lightning arrester.
For example, TN-C uses 3P lightning protection device, TN-S uses 4P, TT uses 3P+N, etc.

2.Know the main parameters of the lightning arrester.

Comprehensive protection
An effective overvoltage protection must combine thefollowing protection systems:
