PBT Material PV Surge Protector 3 Phase Network Voltage 600VDC For Solar System
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | Uchi |
| Certification: | CE / SGS / ISO9001 |
| Model Number: | OBV5-C40-PV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 piece |
|---|---|
| Price: | Negotiate |
| Packaging Details: | export package / Negotiate |
| Delivery Time: | 5-15 days after payment |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 60000 pieces per month |
|
Detail Information |
|||
| Name: | 600V PV Surge Protector | Poles Number: | 2P |
|---|---|---|---|
| In: | 20KA | Imax: | 40KA |
| Connection: | By Screw Terminals: 4-25 Mm2 | Uc: | 530Vdc-1060 Vdc |
| Network Voltage: | 600V | Mounting: | Symmetrical Rail 35 Mm |
| CertificationCE,CQC: | CE / CQC / SGS | Use: | Solar System |
| Material: | PBT/Nylon/VDR | ||
| High Light: | surge arrester 3 phase,600VDC PV Surge Protector,PBT PV Surge Protector |
||
Product Description

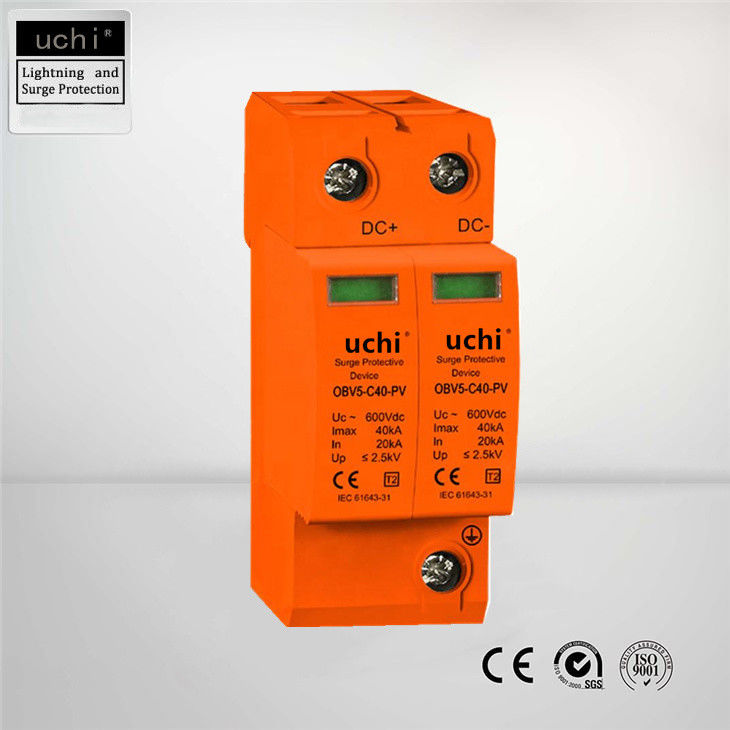

600V PV Surge Protector , Three Phase Surge Diverter For Solar System
OBV5-C40-PV
Prewired modular complete unit for use in photovoltaic systems consisting of a base part and plug-in protection modules
Combined disconnection and short-circuiting device with safe electrical isolation in the protection module prevents fire damage resulting from d.c. switching arcs (patented SCI principle)
Tried and tested fault-resistant Y circuit of the OBV6-C40-PV prevents damage to the surge protective device in case of insulation faults in the generator circuit.
Integrated d.c. fuse allows safe replacement of protection modules without arc formation.
Technical Parameters
| Model: OBV5-C40-PV | ||||||
| Network voltage | 500Vdc | 600Vdc | 800Vdc | 900Vdc | 1000 Vdc | |
| Max. operating voltage Uc | 530Vdc | 630Vdc | 840Vdc | 950Vdc | 1060 Vdc | |
| Nominal discharge current ln | 20kA | |||||
| Max. discharge current lmax | 40kA | |||||
| Protection level (at In) Up | 1.8kV | 2.5kV | 2.8kV | 3.0kV | 3.2kV | |
| Disconnector | ||||||
| Thermal Disconnector | Internal | |||||
| Mechanical characteristics | ||||||
| Connection | by screw terminals: 4-25 mm2 | |||||
| Disconnection indicator | 1 mechanical indicator by pole | |||||
| Mounting | symmetrical rail 35 mm | |||||
| Operating temperature | -40/+85°C | |||||
| Protection class | IP20 | |||||
| Standards compliance | ||||||
| NF EN 61643-11 France | Parafoudre Basse Tension - Essais Classe II | |||||
| IEC 61643-1 International | Low Voltage SPD - Test Class II | |||||
| EN 61643-11 Europe | Parafoudre Basse Tension - Essais Classe II | |||||
Feature&Benefits
-Easy installation or retrofit
-Din-rail mountable
-Fail-safe /self-protected designRemote indicator (optional) with 3pin NO/NC contact
-IP20 finger-safe designVisual indicator
-Small foot print
Application
●AC/DC distribution
●Power supplies
●Industrial automation
●Telecommunications
●Motor controls systems
●PLC applications
●Power transfer equipment
●HVAC applications
● AC drives
●UPS systems
●Security systems
●IT/Data centers
Others
Technology SPD parameter(Note:According to user requirement ,can be customized Uc=140V,440V,550V,voltage range of range of the SPD):
| Type No. | Rated Voltage(V) Un | Continuous Voltage Uc(V~) | Standard Discharge Current In(KA) |
Max Discharge Current |
Protection Level(KA~) | Response Time(ns) |
| DGM1(2)-D5 | 220/380 |
275/320 |
5 | 10 | 1.2 | ≤25 |
| DGM1(2)-D10 | 10 | 2 | 1.6 | |||
| DGM1(2)-C20 | 20 | 40 | 1.8 | |||
| DGM13-B30 | 30 | 60 | .2.2 | |||
| DGM3(4)-B40 | 10 | 80 | 2.4 | |||
| DGM(4)-B60 | 60 | 100 | 2.8 | |||
| DGM-N-PE | 220/255 | 40/60 | 60/80 | 1.2 | ≤100 |
Tip1:How can we distinguish the quality of the lightning arrester?
1. It can be seen from the reaction time: determine whether the lightning arrester can respond in time and quickly discharge the lightning current.
2. It can be seen from the insertion loss: this refers to the installation of a lightning protector, the impact of this lightning protector on the line, the smaller the better
3. It can be seen from the number of impact resistance: determines the service life of the lightning arrester. Generally, the gas discharge tube will not drop after being placed for a period of time. If you want to check its quality, you can use an adjustable high-voltage DC power supply to test .
First of all, you must determine what your power distribution system is like, whether it is TT, TN or IT system. After determining the power distribution system, you can choose the protection mode and wiring method of the lightning arrester to select the appropriate lightning arrester.
For example, TN-C uses 3P lightning protection device, TN-S uses 4P, TT uses 3P+N, etc.
Note: The difference between T1 type and T2 type surge protector
The T1 type surge protector refers to the product with the lightning test waveform of 10/350us, and the T2 type surge protector refers to the product with the lightning test waveform of 8/20us.
The main difference between the two types of surge protectors lies in the different test waveforms. The energy of the 10/350us waveform is stronger than the energy of the 8/20us waveform, so in many cases the T1 surge protector is generally 12.5kA, 15kA, 25kA, etc. , T2 surge protector does have 20kA, 40kA, 60KA, 100kA, etc. Although the value of T2 type surge protector looks larger, their test waveforms are different. In fact, the energy of T1 is stronger.
Therefore, the national standard GB50057-2010 requires the installation of a T1 type surge protector in the main incoming line, which is also the first-level surge protector. When selecting the type, pay attention to the surge protector must have a T1 test Iimp (10/350us) test This parameter is generally Iimp is greater than or equal to 12.5kA, and the protection level Up≤2.5kV is enough.
First of all, you must determine what your power distribution system is like, whether it is TT, TN or IT system. After determining the power distribution system, you can choose the protection mode and wiring method of the lightning arrester to select the appropriate lightning arrester.
For example, TN-C uses 3P lightning protection device, TN-S uses 4P, TT uses 3P+N, etc.
