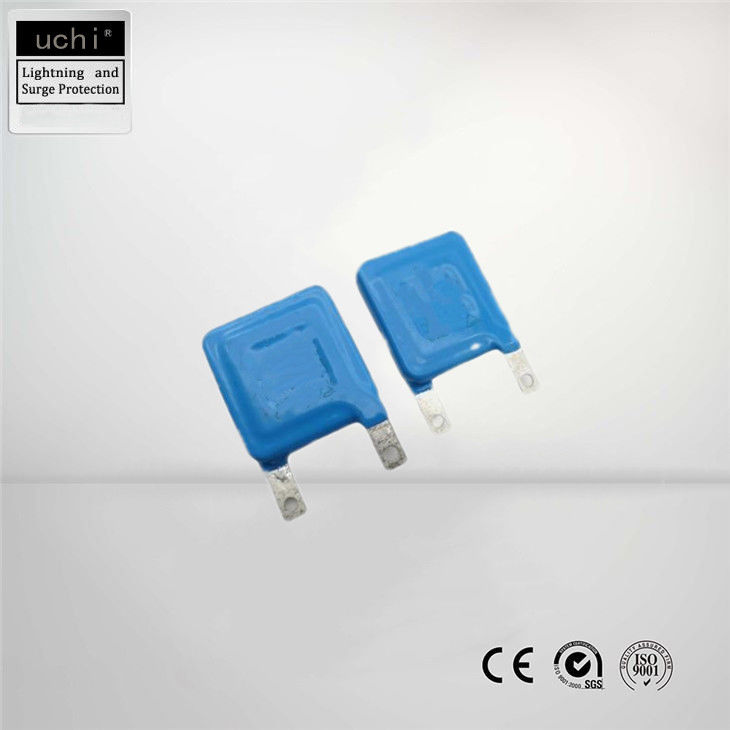

34Z High Energy Varistor 130V AC Solderable Electrode Finish
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | UCHI |
| Certification: | CE / SGS / ISO9001 |
| Model Number: | OBV-34Z |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export package |
| Delivery Time: | 2 Weeks |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 Pieces Per Month |
|
Detail Information |
|||
| Name: | High Energy Varistor 34Z | In: | 25KA/30KA |
|---|---|---|---|
| Imax: | 50KA/60KA | Shape: | Disc Radial Leaded |
| Varistor Type: | Metal Oxide Varistor | Packaging Details: | Bulk |
| Temperature Range: | -40℃~+85℃ | AC: | 130V-750V |
| High Light: | Solderable Electrode Finish varistor 130v,130V High Energy Varistor,34Z High Energy Varistor |
||
Product Description
High Energy Varistor 34Z , AC 130V-750V Oxide Varistor Professional Manufacturer
Part number code for “UCHI ”
| Sizes | MAX | d | d-1(±0.1) | A | A-1 | K | |
| D | H | ||||||
| 14D | 16.5 | 21.0 | 0.8 | 7.5±1.0 | ≦3.0 | ||
| 20D | 21.0 | 26.0 | 1.0 | 10±1.0 | ≦3.0 | ||
| 25D | 26.0 | 31.0 | 1.0 | 10±1.0 | ≦3.0 | ||
| 32D | 35.0 | 40.0 | 7×0.5 | 1.5 | 25.4±1.0 | 25.4±1.0 | ≦5.0 |
| 40D | 42.0 | 48.0 | 7×0.5 | 1.5 | 25.4±1.0 | 25.4±1.0 | ≦5.0 |
| 53D | 56.0 | 61.0 | 9.6×0.7 | 25.4±1.0 | ≦5.0 | ||
| 20S / 22L | 22.0 | 25.0 | 4×0.3 | 1.0 | 22±1.0 | 10±1.0 | ≦3.0 |
| 22S | 28.0 | 28.0 | 4×0.4 | 1.0 | 22±1.0 | 10±1.0 / 12.5±1.0 | ≦5.0 |
| 30S | 35.0 | 28.0 | 4×0.5 | 1.5 | 22±1.0 / 25.4±1.0 | 22±1.0 | ≦5.0 |
| 34L | 33.0 | 38.0 | 6×0.5 / 7×0.5 | 1.5 | 22±1.0 / 25.4±1.0 | 22±1.0 | ≦5.0 |
| 34S | 36.0 | 40.0 | 6×0.5 / 7×0.5 | 1.5 | 22±1.0 / 25.4±1.0 | 22±1.0 | ≦5.0 |
| 34R | 36.0 | 40.0 | 6×0.5 / 7×0.5 | 22±1.0 / 25.4±1.0 | |||
| 34Z | 41.0 | 40.0 | 7×0.5 | 25.4±1.0 | ≦5.0 | ||
UCHI.34Z Specication
High energy varistors (MOVs) are designed for various applications. UCHI® offers the thinnest Type 1 (class I) varistors and high quality Type 2 (class II) varistors with the highest Imax capability, on the market.
The Epoxy coated type products are heavy-duty metal oxide varistors designed mainly for industrial applications and SPDs. They are larger diameter versions of the conventional metal oxide varistor disc components. They can have standard rigid terminals from UCHI® or can be custom designed to fulfill a customer's need to handle high current and energy, facilitating the mounting onto printed circuit boards. The Epoxy Coated Series offers excellent surge protection for use in industrial and consumer electrical equipment, power distribution, control equipment, security/fire alarm systems, railroad equipment, switchboards, computers, telecommunications, power supplies and motor controls.
| Maximum | Varistor Voltage | Clamping | Rated voltage | maximum | Maximum | Typical | |||||
| Model | Allowable | voltage | Peak Current | Energy | Capacitance | ||||||
| Number | Voltage | (max.) | (8/20μs) | (Joule) | (Reference) | ||||||
| 33.5×39.0mm | A.C.rms | DC | V1.0mA( V ) | VC | IP | reference | In. 10 times | I Max. | 10/1000 | @ 1KHz | |
| ( V ) | ( V ) | min. | max. | ( V ) | ( A ) | ( V ) | ( KA ) | μs | ( pf ) | ||
| 34Z201K | 130 | 170 | 185 | 225 | 340 | 350 | AC 125 | 25 | 50 | 460 | 8780 |
| 34Z221K | 140 | 180 | 198 | 242 | 360 | 350 | 510 | 8320 | |||
| 34Z241K | 150 | 200 | 216 | 264 | 395 | 350 | 550 | 7350 | |||
| 34Z271K | 175 | 225 | 243 | 297 | 455 | 350 | 620 | 6630 | |||
| 34Z301K | 190 | 250 | 270 | 330 | 500 | 350 | 690 | 5900 | |||
| 34Z331K | 210 | 275 | 297 | 363 | 550 | 350 | AC 250 | 30 | 60 | 750 | 5400 |
| 34Z361K | 230 | 300 | 324 | 396 | 595 | 350 | Telephone | 850 | 4880 | ||
| 34Z391K | 250 | 320 | 351 | 429 | 650 | 350 | test | 950 | 4600 | ||
| 34Z431K | 275 | 350 | 387 | 473 | 710 | 350 | AC 250 | 1050 | 4100 | ||
| 34Z471K | 300 | 385 | 423 | 517 | 775 | 350 | 1150 | 3750 | |||
| 34Z511K | 320 | 415 | 459 | 561 | 845 | 350 | 1200 | 3450 | |||
| 34Z561K | 350 | 460 | 504 | 616 | 925 | 350 | 1300 | 3200 | |||
| 34Z621K | 385 | 505 | 558 | 682 | 1025 | 350 | 1400 | 2900 | |||
| 34Z681K | 420 | 560 | 612 | 748 | 1120 | 350 | 1400 | 2600 | |||
| 34Z751K | 460 | 615 | 675 | 825 | 1240 | 350 | 25 | 50 | 1540 | 2400 | |
| 34Z781K | 485 | 640 | 702 | 858 | 1290 | 350 | 1550 | 2300 | |||
| 34Z821K | 510 | 670 | 738 | 902 | 1355 | 350 | AC 380 or G | 1600 | 2150 | ||
| 34Z911K | 550 | 745 | 819 | 1001 | 1500 | 350 | 1700 | 1950 | |||
| 34Z951K | 575 | 760 | 855 | 1045 | 1570 | 350 | 1700 | 1860 | |||
| 34Z102K | 625 | 825 | 900 | 1100 | 1650 | 350 | 1750 | 1760 | |||
| 34Z112K | 680 | 895 | 990 | 1210 | 1815 | 350 | 1900 | 1600 | |||
| 34Z122K | 750 | 980 | 1150 | 1320 | 1980 | 350 | 2000 | 1500 | |||
Provided in Disc Form For Unique Packing by high-energy disc varistors (MOVs) intended for special applications Customer
Solderable Electrode Finish Options
Pressure Contacts and/or Disc Stacking May Be Utilized
Available Edge Passivation Insulation
No Derating Up to 85ºC Ambient.
Applications
Transistor, diode or TRIAC semiconductor protection
Surge protection in consumer electronics
Surge protection in electronic home appliances, gas and petroleum appliances
Relay and electromagnetic valve surge absorption
(1). transistor, IC, SCR and semiconductor switching element and a variety of electronic, electrical equipment of over voltage
protection
(2) home appliances surge absorption and overvoltage protection
(3) industrial electrical surge absorption
(4) to eliminate electrostatic discharge and noise signal
(5) surge absorption of relays and solenoid valves
(6). The leakage switch overvoltage protection
All landowners telephone program-controlled switches and lightning protection and overvoltage protection of communications
equipment
