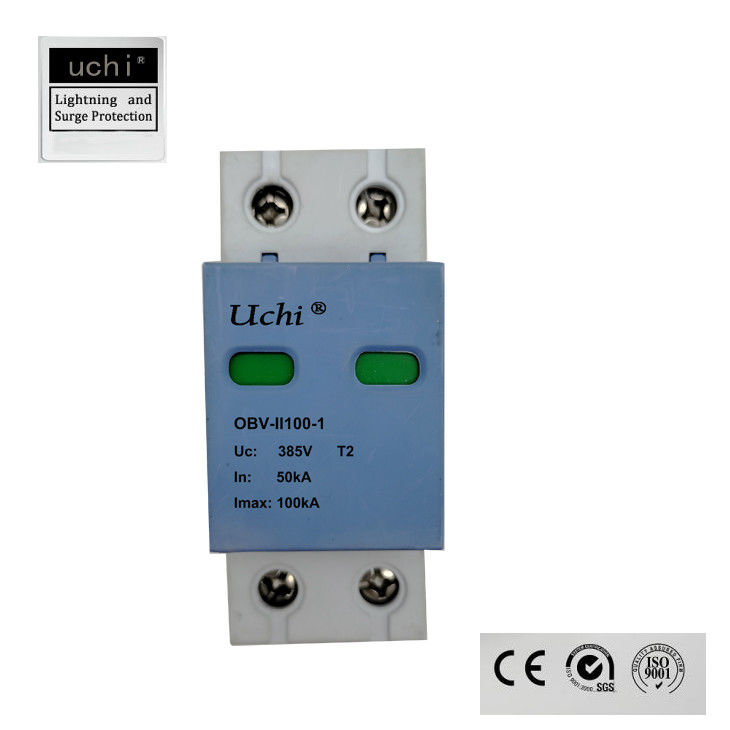

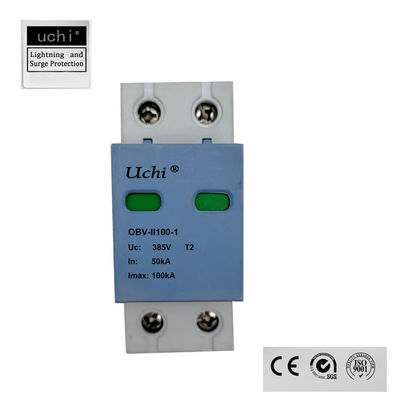

25ns Response Time 100kA Surge Protective Device With 2.2kV Up

25ns Response Time 100kA Surge Protective Device With 2.2kV Up

Product Details:

Place of Origin: Dongguan China
Brand Name: Uchi
Certification: CE / SGS / ISO9001
Model Number: OBV-II100-1

Payment & Shipping Terms:

Minimum Order Quantity: 200 piece
Price: Negotiate
Packaging Details: export package / Negotiate
Delivery Time: 5-15 days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 60000 pieces per month
Get Best Price Contact Now

Detail Information

Uc: 385V Condition: 100% Original
CertificationCE,CQC: CE / CQC / SGS System Voltage: 220V
Environment Temperature: (-25℃~+60℃) Status Indicator: Green-OK; Red-FAIL
Response Time (L-N): ≤25ns Protection Rating: IP 20
In(8/20μs): 60kA Imax(8/20μs): 100kA
Lightning Protection: Class 1-4 Up: 2.2kV
Response Time TA: 25ns
High Light:

100kA Surge Protective Device

,

25ns Response Time Surge Protective Device

,

2.2kV Up Surge Protection Device

Product Description

25ns Response Time 100kA Surge Protective Device With 2.2kV Up

Lower Voltage 385V 100kA Surge Protection Device In 27MM DEHN Contruction

OBV-II100-1 data

Uc(maximum continuous operating voltage) 385V
Imax(maximum discharge current) 100kA
In(nominal discharge current for class II test) 60kA
Up(voltage protection level) ≤2.2kv
response time ≤25ns
Signal deterioration indication red: replace
green:OK
Housing Material thermoplastic material
Housing self-extinguishing class UL94_V0
Temperature range -40℃+70℃
humidity range ≤95%
Elevational ≤3000m
Method of connecting wire Connect in Parallel
Mounting method 35mm standard rail installation
IP(degree of protection of enclosure) IP20









Advantage:

1. No continuous current problem, small leakage current
2. The product is easy to install, plug and replace the module, with the function of anti-stolid, through different angles of the anti-stolid jack effectively prevent different voltage modules and the base inserted by mistake.

3. It can be used in single-phase/three-phase power supply systems through different number of combinations



Product Characteristics

1. Double row structure, one row of failure after the other still achieve protection
2. The flow capacity is doubled, up to 100 kA

3. Built-in instantaneous overcurrent circuit breaker
4. Remote signal alarm interface
5. Pluggable replacement module
6. Failure indication
7. Response speed, nanosecond level
8. Standard modular installation
9. Built-in instantaneous overheat circuit breaker





Scope of application:

Modular large current surge protector is designed according to IEC and GB standards, and is the first level of power surge protector for power supply systems. The module is standard 35mm guide rail mounting mode. It has high discharge capacity of current. Up to 100kA (8/20us). First level surge protection of power supply for equipment systems in areas with high lightning risk.

1. The main power distribution cabinet of the building with the power supply line shielded and buried input

2. The power distribution box for the inside and outside of the building with the input line

3. Outdoor distribution cabinet/distribution box
