500V 800V 1000V photovoltaic surge protective device SPD

500V 800V 1000V photovoltaic surge protective device SPD

Product Details:

Place of Origin: Dongguan China
Brand Name: Uchi
Certification: CE / SGS / ISO9001
Model Number: H2-PV

Payment & Shipping Terms:

Minimum Order Quantity: 200 piece
Price: Negotiate
Packaging Details: export package / Negotiate
Delivery Time: 5-15 days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 60000 pieces per month
Get Best Price Contact Now

Detail Information

Uc: 800V CertificationCE,CQC: CE / CQC / SGS
Environment Temperature: (-40℃~+85℃) Status Indicator: Green-OK; Red-FAIL
Response Time (L-N): ≤25ns In(8/20μs): 20kA
Imax(8/20μs): 40kA Size: 35mm/pole
Protection Level(kV): 3.0 Rated Voltage (VDC): 800
Continue To Work Voltage(VDC): 880
High Light:

100kA Surge Protection Device SPD

,

385V Surge Protection Device SPD

,

Flame Retardant SPD Surge Protector

Product Description

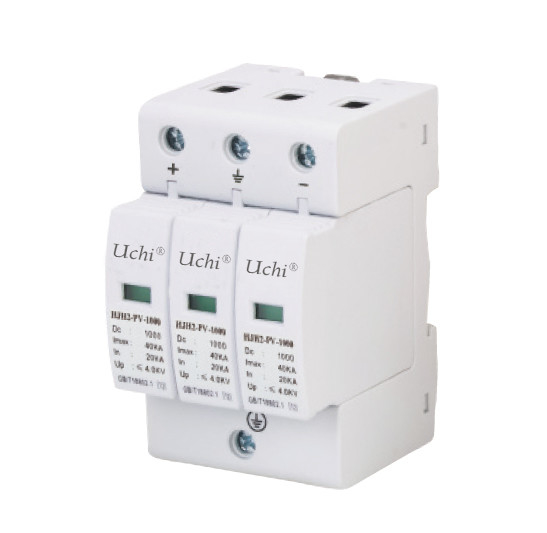

500V 800V 1000V photovoltaic surge protective device SPD

500V 800V 1000V photovoltaic surge protective device SPD

HJH2-PV SPD



NameDC Power Supply LightningDC Power Supply LightningDC Power Supply LightningProtection ModuleProtection ModuleProtection Module
Product model HJH2-PV-500 HJH2-PV-800 HJH2-PV-1000
Nominal capacity the flow In(kA8/20 us) 20 20 20
Maximum flow capacity lanx(kA8/20 us) 40 40 40
Protection level (kV) 2.5 3 4
Response time(ns) 25 25 25
Rated voltage(VDC) 500 800 1000
Continue to work voltage(VDC) 550 880 1100
Lleakage current 0.75U ImA( μA) ≤20 ≤20 ≤20
Working temperature(C) -40℃~+85℃ -40℃~+85℃ -40℃~+85℃



Installation
The power must be cut off before Installation,strictly charged operation Series fuse ar brelker in frpnt gf liahtnina pratection madule
Please instal according to the insta lation diagram shown in connection, wherein+positive line as the negative wire, PE wire, ngt the wrong connection,After the
instllation is complete, close the circuit breaker (fuse) switch, check whether the normal work state After the installation of the module is inserted in paxce, check the anti co module is working Lightning protection mgdule during use,should be reaularly tested anves tne, feuult diEo3.nne 6t2te vnen 3 2 .co indn is gow nal nitnh red or remote alarm signal, said lightning protection module failure, should be timely repair or replacement
Parallel type power supply lghtring protection module should be installed In parallel connection line, lirm and reliable, and the requirement Of short, coarse. Straight



Installation dimensions

500V 800V 1000V photovoltaic surge protective device SPD 0





Application:

Main structure and working principle:

In a three-phase four-wire system, three phase lines and a zero line are protected between the ground wire and the three phase lines. Protector is in a state of high resistance under normal circumstances,When the power grid surges due to lightning strikes or other causes, the protector will immediately switch on within nanosecond time and bring the surge overvoltage into the earth, to protect electrical equipment on the power grid. when the surge voltage through the protector, and disappeared , the protector to change to a high resistance state, Thus does not affect the normal operation of the power grid.



Character

1. Class B lightning current SPD protection for equipotential connection during lightning strike

2. Install at the junction of LPZOA or LPZOB and LPZ1
3. Usually installed in the incoming low voltage main distribution cabinet
4. The protector is mounted on a standard 35MM rail
5. The protector is connected by copper wire of 6-35mm2
6. The ground wire should be more than 6MM2 of two-color wire
7. In order to prevent the failure of the surge protector from affecting the normal operation of the power grid, the protector connected to the L line shall be connected in series with a backup protector or fuse of 63A or above
