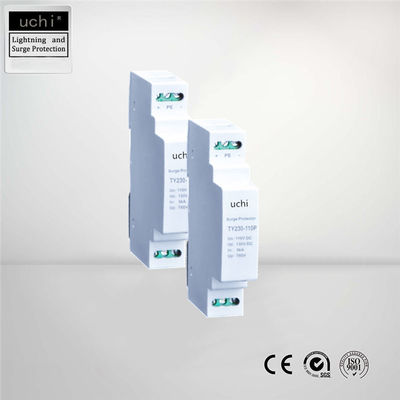

• Industrial DC Surge Protection Device 110V 10KA For Photovoltaic Systems
Industrial DC Surge Protection Device 110V 10KA For Photovoltaic Systems

Industrial DC Surge Protection Device 110V 10KA For Photovoltaic Systems

Product Details:

Place of Origin: Dongguan China
Brand Name: Uchi
Certification: CE / SGS / ISO900
Model Number: DC Surge Protection Device

Payment & Shipping Terms:

Minimum Order Quantity: 50 Piece/Pieces
Price: Negotiate Ex-work / FOB price
Packaging Details: Export package
Delivery Time: Shipped in 10 days after payment
Payment Terms: TT / LC
Supply Ability: 100000 Piece/Pieces Month
Get Best Price Contact Now

Detail Information

Pole Number: 1 Poles Un: 110VDC
Uc: 130VDC In: 5KA
Imax: 10KA Material: Thermal Plastic UL94-V0
Protection Class IP: IP 20 Application: Photovoltaic Systems
Test Standards: IEC 61643-21
High Light:

110V industrial power surge protector

,

10ka DC Surge Protection Device

,

110V DC Surge Protection Device

Product Description

Industrial DC Surge Protection Device 110V 10KA For Photovoltaic Systems

10KA Industrial DC Surge Protection Device , 110VDC Control Signal Lightning Protector



Performance characteristics:


Adopt the latest thermal separation technology, built-in thermal protection, automatic separation device for short-circuit failure, completely avoid fire;The core components adopt internationally well-known brands, with excellent performance, stable and reliable work;

• DIN rail compatible.
• It adopts modular 35mm rail installation.
• Designed according to IEC and GB standard.
• Customization to other operating voltage is also available.



The main parameters:


Nominal voltage   Un : 110V DC

Nominal discharge current In(8/20μs): 5kA
Maximum discharge current Imax (8/20μs):10kA
Combination method: +/PE,-/PE
Response time: ≤25ns
Working environment: -40℃~+80℃
Installation method: rail installation



Place of Origin: Dongguan


Qualification certification: CE, FCC, ROHS, product test report, Pacific Product Insurance, etc.
Test standard: IEC 61643-1:2005; GB 18802.1-2011 Low Voltage Surge Protector (SPD) Part 1 Surge Protector for Low Voltage Distribution System-Performance Requirements and Test Methods

Scope of application:
This product is a special lightning surge protector for DC systems, suitable for 12V DC power supply systems.



Specification Dc Surge Protection Device
Test standards IEC 61643-21
Nominal voltage                                               Un DC 110V
Max. Continuous Operating Voltage                Uc DC 130V
Leakage current ≤20µA
Nominal discharge current (8/20μs)                  In 5kA
Max. Discharge Current(8/20μs)                  Imax 10kA
Voltage protection level                                    Up ≤780V
Response time                                                  tA <25ns
Protection Mode "+"-PE/"-"-PE
Operating temperature range                           Tu -40℃-80℃
Enclosure material                         Thermal plastic UL94-V0
Degree of protection IP20




More application



• Specifically designed for data and telecommunication network.
• Suitable for 110V DC bus bar microwave communication systems, control bus and so on.
• Universal use on 35 mm DIN profile rail in every normal commercially available distributor housing.
• Suitable for surge protection of communication line / telemetry signal / remote signal and other signal
equipment.
• Provides DC bus bar lines surge protection against transient voltage at the intersection of LPZ2 and
LPZ3 as defined in GB50343 lightning protection zones.

Industrial DC Surge Protection Device 110V 10KA For Photovoltaic Systems 0





FAQ


Q: Can I get some samples?
A: Yes, Sample orders welcomed.

Q: Can I use my own Logo or design on goods?
A: Yes, Customized logo and design on mass production are available.

Q:What is the delivery time?
A: 3 days for samples, 7-15 days for mass production.

Q: What is the payment term?
A: T/T, L/C at sight, West union , Paypal, etc.
